SMS CNC Hybrid prss brake
SBK Series
With a dual servo pump control system, it has no overflow loss, saves up to 70% energy, and keeps oil temperature low. The all-steel welded body offers high rigidity; combined with closed-loop control, it achieves ±0.01mm bending accuracy. It runs quietly, suits multi-spec precision processing, and is ideal for efficient production.
View SpecificationsRequest A quote
High Precision
positional accuracy. repeatability accuracy
Energy Efficiency
Intelligent functions are easy to integrate.
Fast Response
Fast Down - working - return" can be shortened 30%.
Strong stability
Servo motors have high reliability.
Easy To Operate
30%-60% more efficient than traditional hydraulic
environmental friendly
Lower noise. Less contamination of hydraulic oil.
What is CNC dual Servo Pump Hybrid Press Brake?
- Dual-Motor Independent Drive:The equipment is equipped with two servo motors, which drive two fixed-displacement hydraulic pumps respectively.
- Flow distribution on demand: The rotational speed of the two motors is precisely controlled by the numerical control system to directly adjust the output flow of the pumps.
- No valve control loss: There is no need for traditional electromagnetic directional valves or proportional valves for throttling and speed control. The flow directly matches the requirements of the bending action, red.
Application Area
Standard Equipment
Request Information- Delem DA53TX with Profile T
- Multi 4+1 Axis with Y1,Y2,X,R+V
- Hybird + DP Tech Hydraulic system
- NOK Sealing Components
- Givi Measure Grating Ruler
- Automatic Crowning System
- Hiwin Ball Screw and linear guide
- Fast Clamping system for fix tools
- Front Support
- Schineider Electrical Components
- DSP Laser Protection
- Rear protection + door open and power off

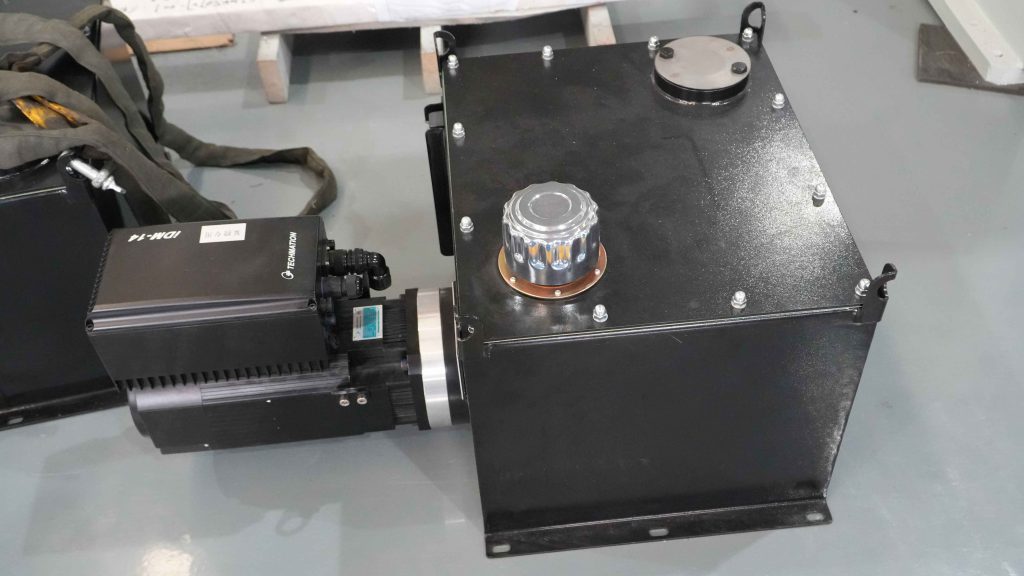

BK29 EHPU Hybird Power
- Fast reading - Performance is improved by 50% by reducing cycle time.
- High efficiency - Energy efficiency is improved by 50%
- Energy-saving - Energy saving by 70%
- Precise - Positioning accuracy reaches 0.005mm
- Reliable - Minimal risk of leakage
- Low noise - Lower noise in all working modes, below 60dB
- Cost optimization: Lower installation and service costs
Delem DA53TX Controller
The new DA-53Tx touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine functionality.
- Numerical touch screen programming.
- 15" high resolution color TFT.
- Crowning control.
- Servo and frequency inverter control.
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- USB, peripheral interfacing.
- Profile-T offline software.
Quality CNC Back Gauge
The 4+1 axis consists of 4 basic motion axes (Y1, Y2, X, R) and 1 compensation axis (usually V axis). All axes work together to achieve high-precision bending control.
- Taiwan Hiwin Linear guide and Ball screw used for X & R axis.
- Fingers: rotational fine adjustment & electric adjustment.
- Y-axis positioning accuracy: ±0.01mm
- X+R axis positioning accuracy: ±0.025mm.

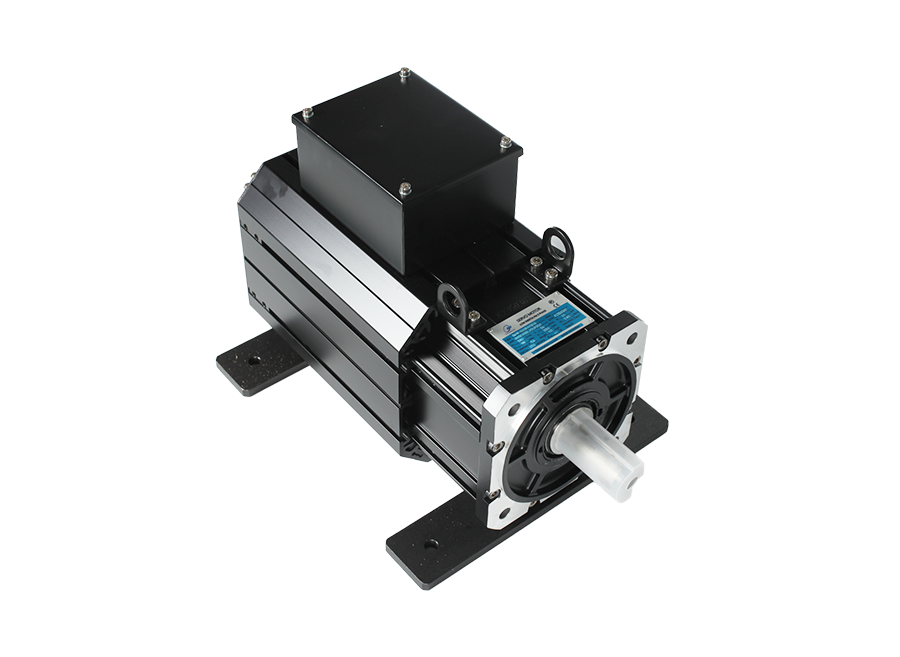

Main Servo Motor
Compared with traditional servo motors, it features higher power density, greater torque density, and stronger flux-weakening capability. It can be widely applied to various hydraulic equipment or systems, and is particularly suitable for application scenarios requiring ultra-high response and short-term overload.
- Overall performance is improved by more than 20%
- Low inertia design improves dynamic response by 30%
- The S6 overload operation time is increased by more than 30%
- Low-noise design
- The maximum rotation speed can reachEmbedded magnetic circuit design, with stronger demagnetization resistance of permanent magnets.

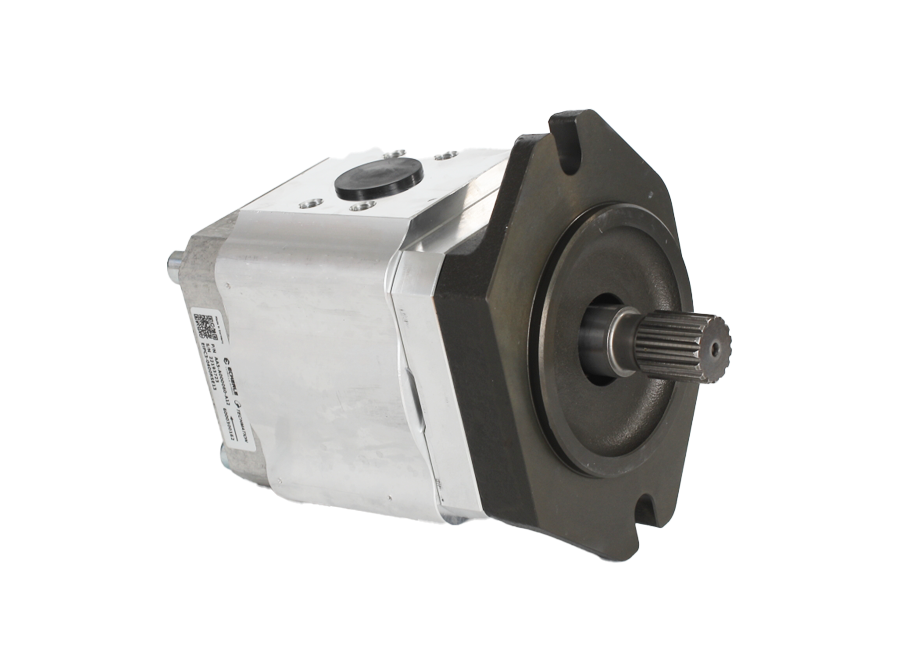

Oil Pump-erkerle
The Eckerle series oil pumps adopt the new technology of the EIPC new series, which can withstand high pressure, feature low pulsation and stable pressure, ensuring stable mechanical operation and a long service life.
- New technology of the EIPC new series
- Aluminum alloy body
- High pressure
- Low pulsation and stable pressure ensure stable mechanical operation and a long service life.

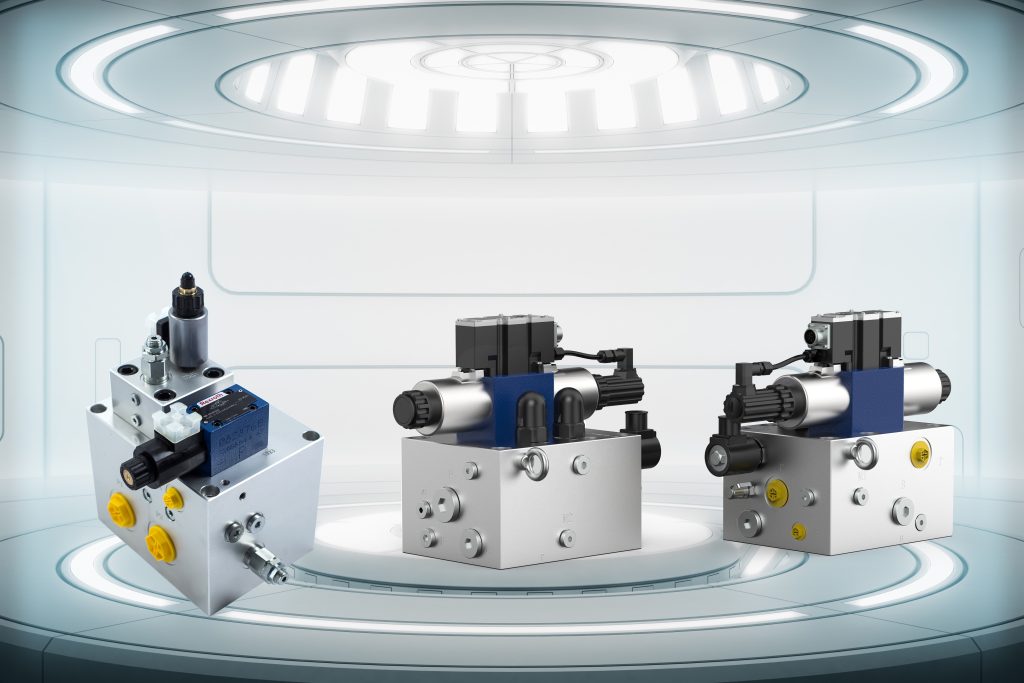

Hydraulic Components- DP Tech
- The German Bosch Rexroth valve block provides a powerful power source.
- A high-frequency response proportional servo valve is adopted.
- The positioning accuracy reaches 0.01mm.
- Integrated high-pressure filter.
- Integrated hydraulic deflection compensation function.
- equipped with an LVDT displacement sensor for better precision control..
Sealing Components-NOK
Hydraulic system/cylinder valves: imported sealing rings (anti-aging, good sealing); ferrule oil pipe joints (self-sealing, no ring) cut oil leakage.
- Imported japan NOK Company O-Ring + Y-Ring + U-Ring.
- Prevent leakage and ensure system pressure.
- Prevent contamination and protect hydraulic components.
- Adapt to dynamic working conditions and ensure stability.

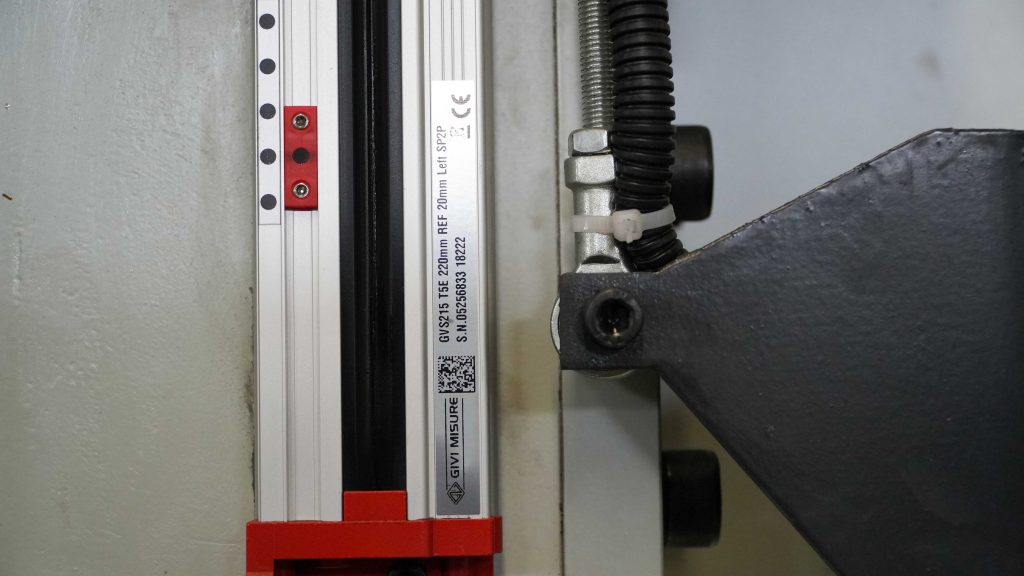

Grating Ruler-givi measure
Machine sides: 2 linear encoders (measure ram-worktable distance, table-mounted to avoid side frame deformation influence); data sent to control system for servo valve control signals.
- Magnetic incremental encoder with pole pitch 2+2 mm.
- Particularly suitable for applications on synchronized press brakes.
- Reader head: guided by self-aligned, self-cleaning sliding carriage (with spring system).
- Resolution up to 1 μm and repeatability ± 1 increment.
- Accuracy grade ± 15 μm.
- Moulded M12 connector (IP 67) or other models on request.
- Safety limit switches, positionable at both ends.

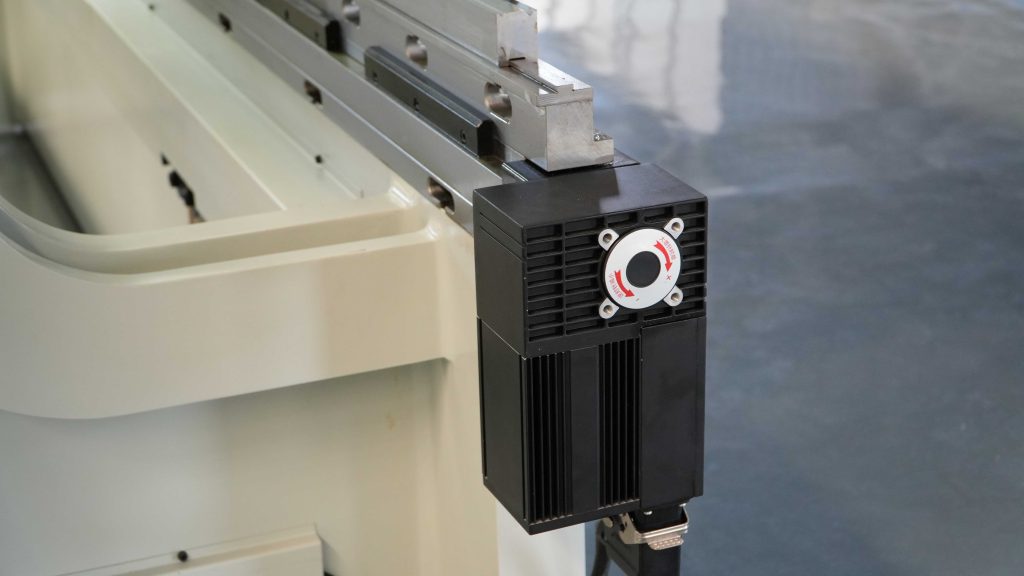

Automatic Crowning Worktable
Bending: Sheet reaction deforms slider lower surface concave (max in middle) → uneven workpiece angles; auto convexity-adjustable worktable bulges middle to offset deformation, homogenize pressure, ensure consistent angles.
- Greatly improve bending precision and ensure workpiece consistency.
- High degree of automation, reducing the operation threshold and errors.
- Suitable for multiple working conditions with strong flexibility.
- Reduce equipment wear and tear and extend service life.
- Improve processing efficiency and reduce rework.
Ball Screw & Linear Guide -Hiwin
- High positioning accuracy.
- Low wear, maintaining accuracy for a long time.
- Suitable for high-speed movement, cutting machine's required driving horsepower.
- Withstands vertical (up/down) & horizontal (left/right) loads simultaneously.
- Easy assembly and interchangeability.
- Simple lubrication structure.
Fast Claping System
Manual quick die clamp (upper die): fast clamping/removal, solves traditional bolt pain points (low efficiency, cumbersome); fits small-batch, multi-variety sheet processing.
- Greatly shorten the die change time.
- Low operation threshold and labor-saving.
- Reliable structure and controllable cost.
- Stable clamping and precise positioning.
Front Support Device
It supports the sheet metal during the bending process (especially for large-size and heavy workpieces), reduces the intensity of manual holding, and ensures the processing positioning accuracy through stable support.
- Fewer complex transmission components, lower manufacturing/maintenance difficulty.
- Complete height and distance adjustment without disassembling bolts.
- Prioritize manual/small electric drives to avoid high-end servo system investment.
- Bears sheet metal weight without obvious deformation, ensuring support accuracy.
Electronic components
Adopting branded electrical components, the circuit design is simple, reasonable, and the wiring is neat. The oversized cabinet is sturdy and durable, with good heat dissipation and low failure rate.
- Schneider imported components are adopted, featuring reliable quality and safety as well as easy replacement
DSP Laser Protection
DSP laser safety device protects operator safety (avoids slider movement risks); forms block protection for bending tool tip (front/middle/rear), fixed under tip & moves with die. Any object enters zone before touching tip → DSP signals to stop slider.
- CLASS 1M Block Laser Emitter.
- Safety level up to CAT.4 and SIL3.
- Compliant with European CE certification.
- Protection class IP65.
- System response time is 5MS
- Maximum protection distance up to 15M
- Equipped with LED indicators to display various statuses
- With stop distance detection function
- Protects tool tip (front/middle/rear, shieldable); shielding front/rear enables box-folding.
- Shielding points: manually adjustable at will, easy setting, continuous monitoring
Rear Protection + Door open and power off
Bender door-open power-off protection: key safety function, prevents operator contact with hazardous areas (avoids mechanical injury/electric shock).
- Prevention of Mechanical Hazards
- Prevention of Injury Caused by Misoperation
- Protection of Equipment Precision
- Compliant with safety regulations
Optional Parts
Request Information- More Controller
- More available tools
- Extended more axis
- Europe Promecam clamping system
- Electrical Cabinet Air Conditioner
- Oil Temperature Cooler
- Hydraulic clamping system
- Automatic adjustment v-opening dies
- Elctrical Sheet metal front support
- Laser angle check
More Controller

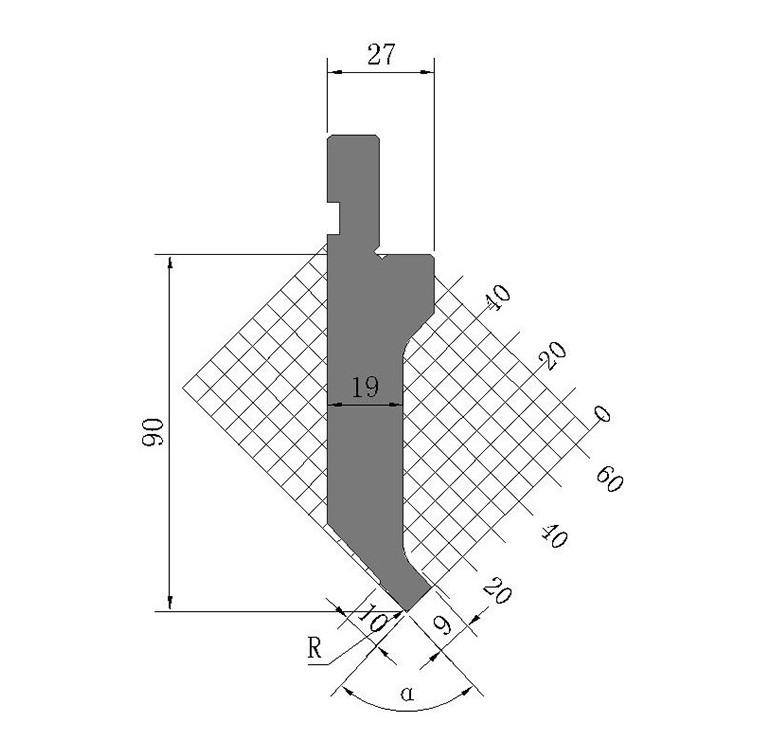

Available Tools

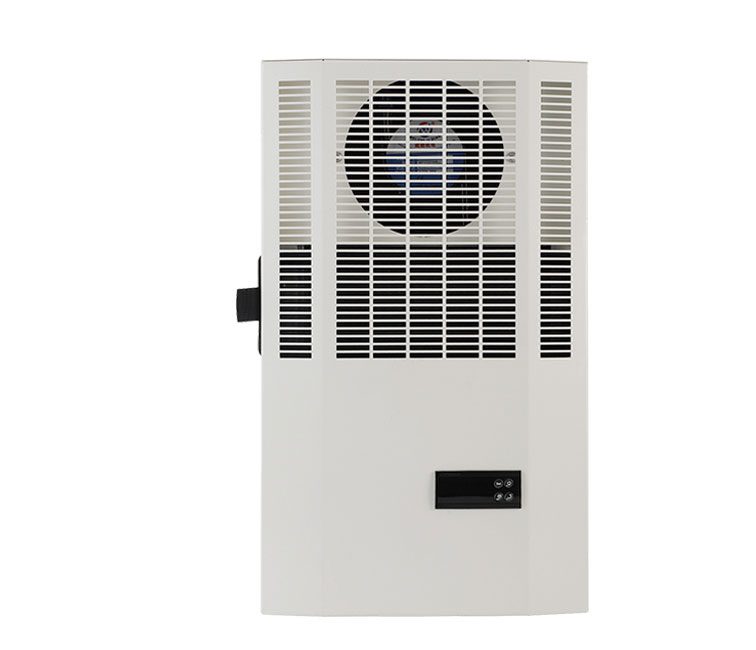

Oil Cooler

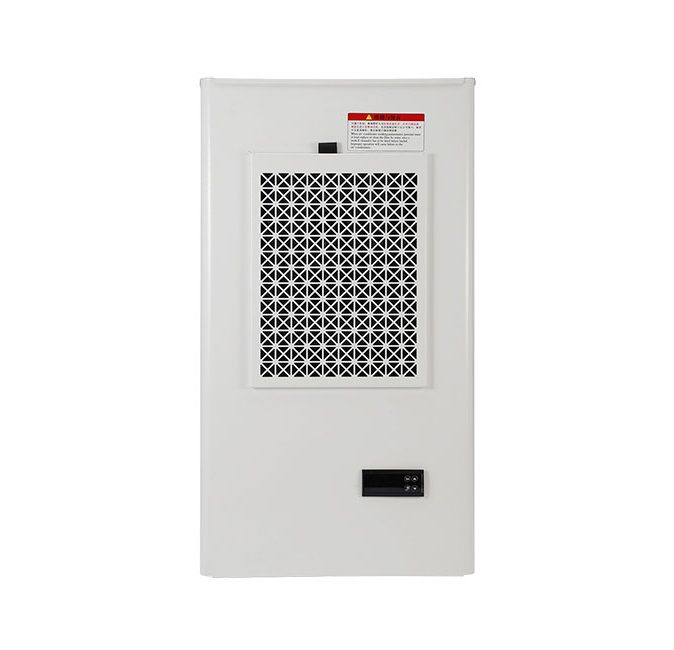

Air Conditioner

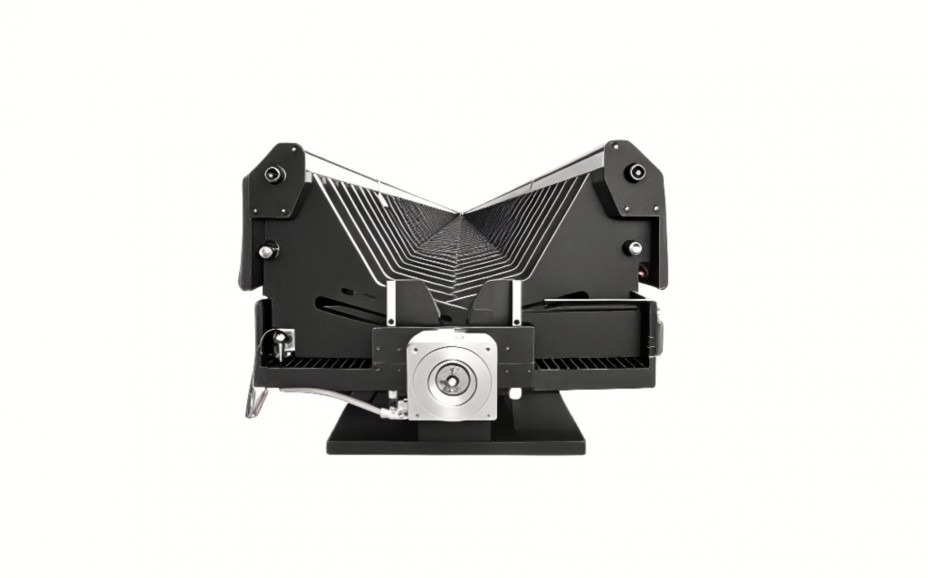

Adjustable Dies
Laser Angle Check

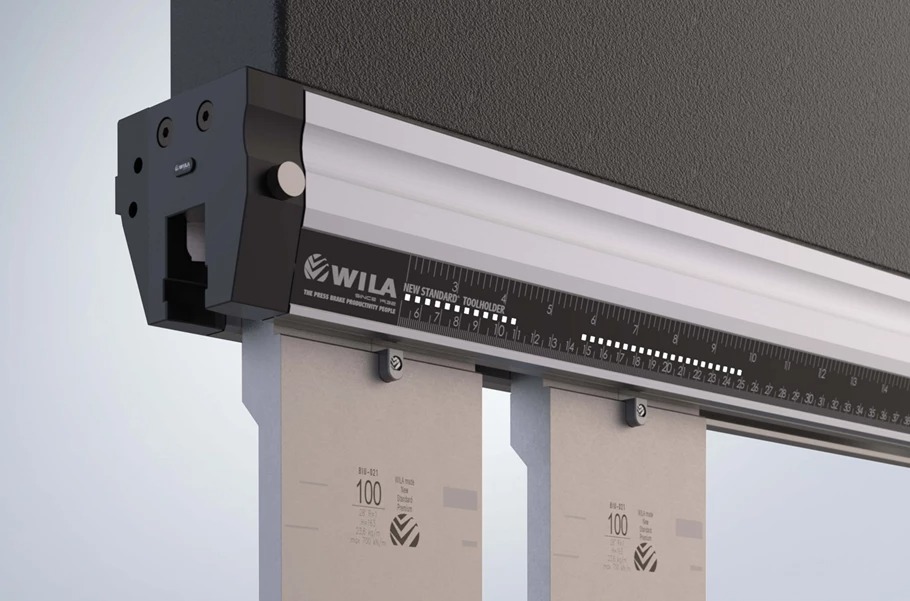

Hydraulic Clamping
Sheet metal Support
Main Parameters
| Model | Pressure | Working Table | column spacing | Slide Stroke | Max opening | throat depth | Motor power | Oil Tank | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
KN |
MM |
MM |
MM |
MM |
MM |
KW |
L |
MM |
MM |
MM |
KG |
|
100/3200 |
1000 |
3200 |
2700 |
200 |
480 |
400 |
2*5.5 |
2*75 |
3700 |
1750 |
2900 |
7500 |
|
100/4000 |
1000 |
4000 |
3500 |
200 |
480 |
400 |
2*7.5 |
2*75 |
3700 |
1750 |
3100 |
8500 |
|
130/3200 |
1300 |
3200 |
2700 |
200 |
480 |
400 |
2*7.5 |
2*75 |
3700 |
1750 |
3100 |
9000 |
|
130/4000 |
1300 |
4000 |
3500 |
200 |
480 |
400 |
2*7.5 |
2*75 |
4500 |
1750 |
3100 |
10500 |
|
160/3200 |
1600 |
3200 |
2700 |
200 |
480 |
400 |
2*8.5 |
2*85 |
3700 |
1750 |
3100 |
10500 |
|
160/4000 |
1600 |
4000 |
3500 |
200 |
480 |
400 |
2*8.5 |
2*85 |
4500 |
1750 |
3100 |
11500 |
|
200/3200 |
2000 |
3200 |
2700 |
200 |
480 |
400 |
2*8.5 |
2*85 |
3700 |
1900 |
3200 |
12500 |
|
200/4000 |
2000 |
4000 |
3500 |
200 |
480 |
400 |
2*8.5 |
2*85 |
4500 |
1900 |
3200 |
13500 |
|
250/3200 |
2500 |
3200 |
2700 |
250 |
520 |
400 |
2*11 |
2*100 |
3700 |
2100 |
3500 |
15000 |
|
250/4000 |
3500 |
4000 |
3500 |
250 |
520 |
400 |
2*11 |
2*100 |
4500 |
2100 |
3500 |
16500 |
