What is a SPL Series CNC Bending System for light poles?
The SPL light pole dedicated bending machine is a professional bending equipment developed by SMS Machinery for the light pole production industry, featuring high precision, high efficiency, and strong adaptability.
- Coil energizes to attract pressure plate, clamping thin plate with base.
- Electromagnetic clamping enables multi-workpiece processing (easy operation)
- mold change meets various light pole bending needs.
- processes poles of varied lengths (12m, 15m+, some models) & thicknesses (0.1-20mm)
- fits street, sign poles.
High Precision
Expandable to six axes, with precise position control
Efficient system
Integrated design reduces oil leakage
Flexible molds
Upper mold combinations are adjustable
Press Brake Standard Configurations
Request information- Delem DA53TX with profile T
- Multi 4+1 axis with Y1,Y2,X,R+V
- Rexroth Hydraulic system
- NOK Sealing Components
- Givi Measure Grating Ruler
- Automatic Crowning System
- Hiwin Ball Screw and linear guide
- Fast Clamping system for fix tools
- Front Support
- Schineider Electrical Components
- DSP Laser Protection
- Rear protection + door open and power off

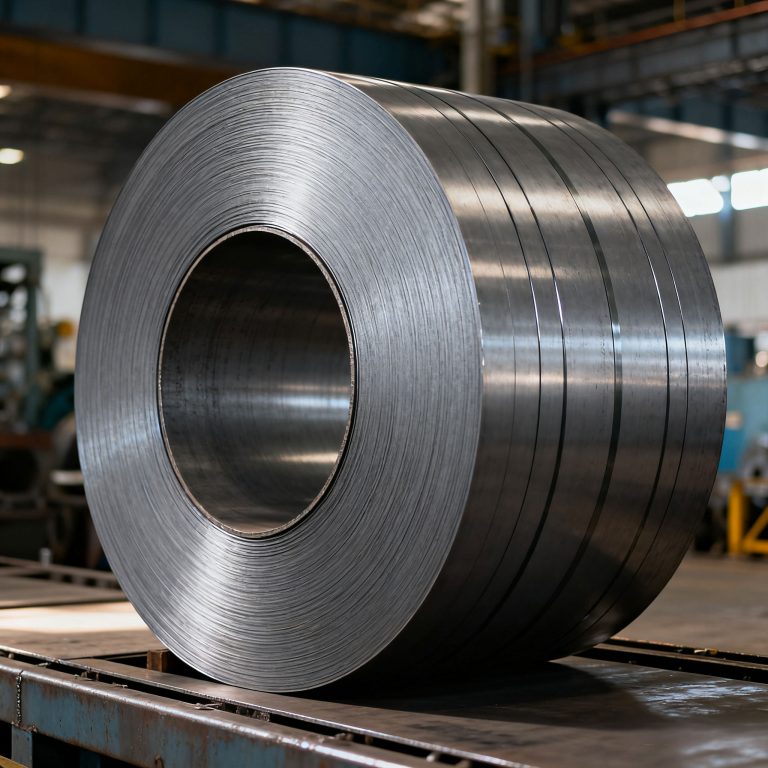

Raw Material : Steel Coil

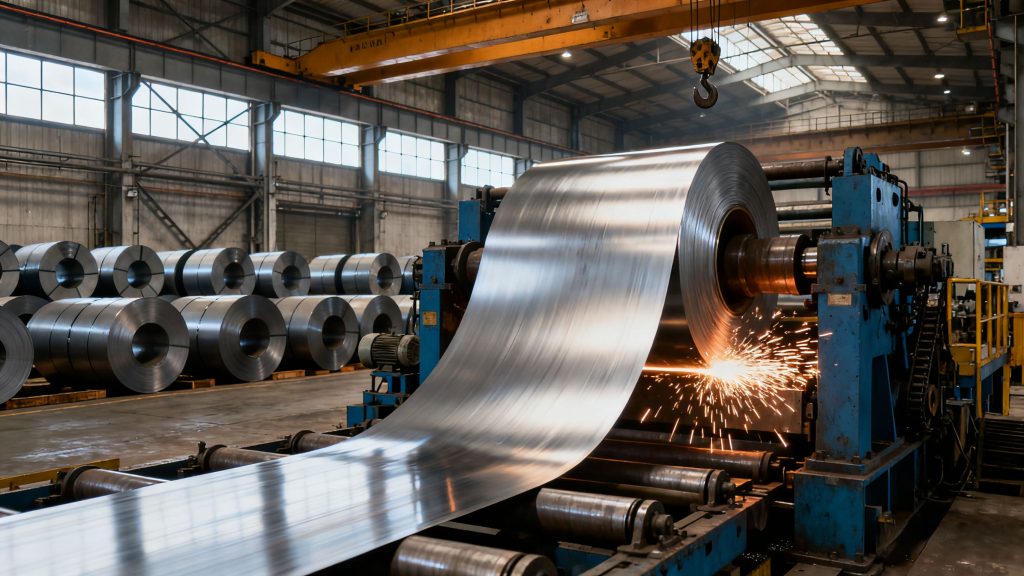

Cut Length Line For Light Pole
Its is for light pole material uncoiling, leveling, cutting, scrape edge slitting and taper slitting process, to get one side small width, one side big width steel plate.
Steel Plate slitting machine
The light pole plate slitting machine is base on the rolling shearing principle. It is to cut the light pole taper steel and get one side big one side small width steel plate.There is a dolly in the front of the slitting unit. It is for control the taper cutting degree. Through changing the base position on dolly to change the taper degree

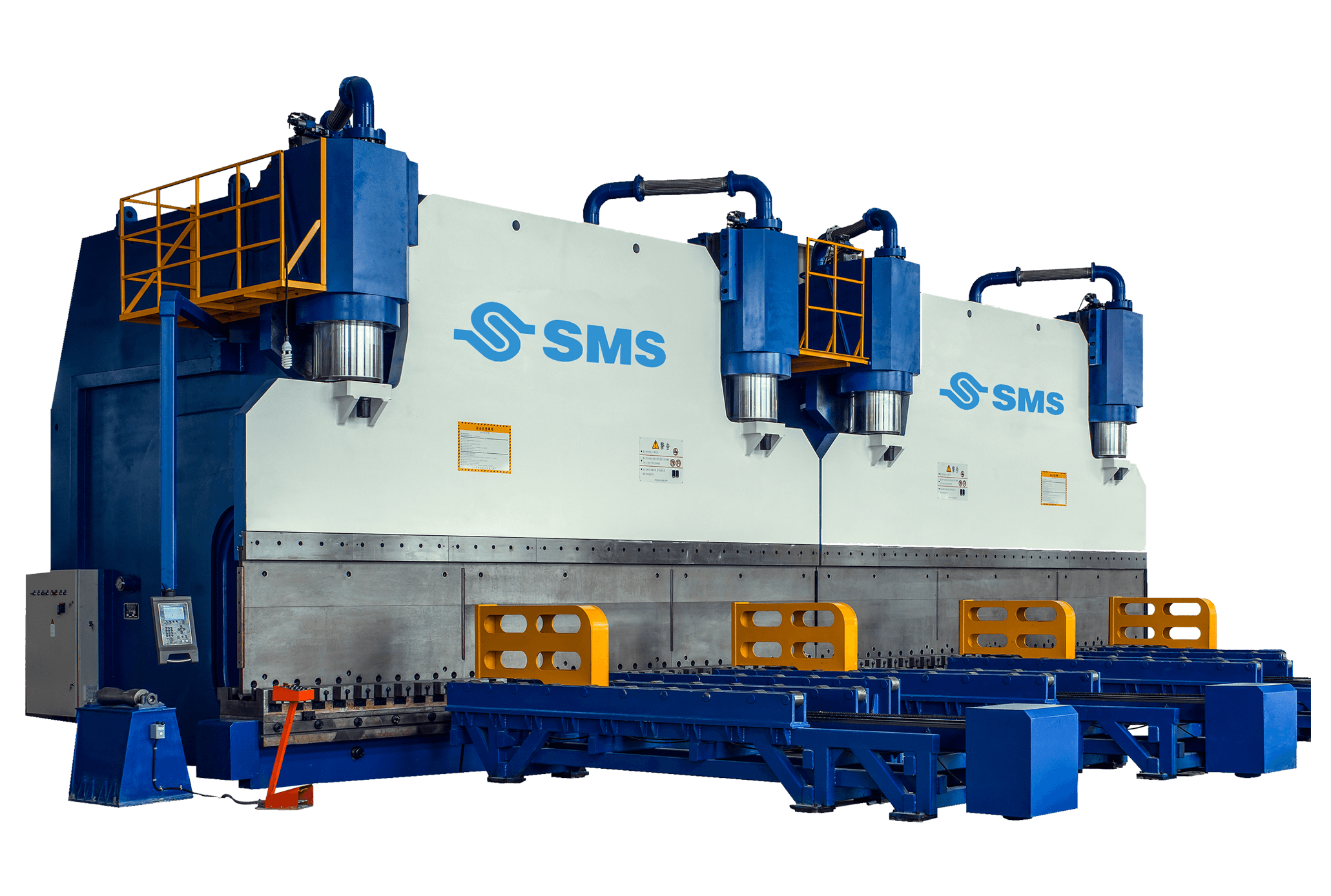

Tandem Link press brake
- Strong, firm and high rigidity.
- Hydraulic system, only using world famous brands, stable operation.
- Special design of hydraulic system, low operating oil temperature.
- The oil cylinder is large, the pressure is high, and the overall output force is higher than other companies
- Long years of press brake tooling design experience.
- Side unloading system is safe and fast.
Press brake Toolings

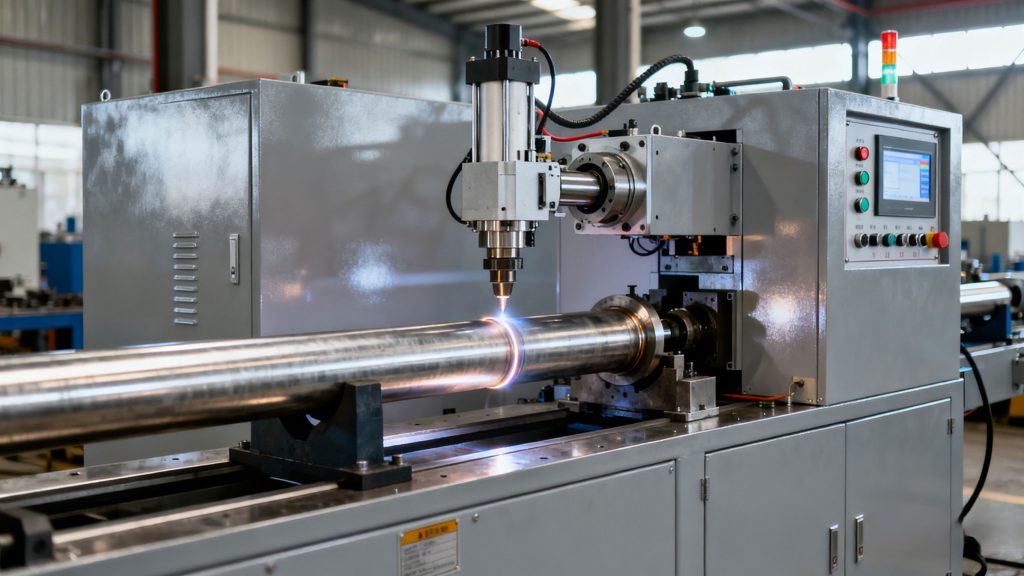

Light Pole shut welding machine
- It is suitable for the welding of street light pole, with round shape and no deformation, and no burning through during welding.
- Full CNC, full servo, 3 sets of presser feet, which can be automatically adjusted with the change of the pole diameter taper. The side presser foot can be adjusted in the taper direction of the pole.
- There is no hydraulic system to avoid oil leakage and greatly reduce maintenance
Pole Straightening machine
- It is for straightening the street light pole ，high mast pole after welding and hot dip galvanizing process.
High mast assembly & straightening machine
- The three hydraulic cylinder clamping two pieces parts of high mast and do spot welding process.
- Press the high mast to make the bottom area round shape, in order to assemble the bottom flange.
- Press the high mast for straightening after welding or after hot dip galvanizing process.
