SMS Normal Hydraulic Press Brake
SPT Series
All-steel welding (high rigidity) & precision hydraulics (stable performance); processes steel, aluminum, stainless steel; with protection & easy operation; suitable for small-to-medium batch, multi-spec applications; an efficient choice for metal processing.
View SpecificationsRequest A quote
Precision
precisely control angles and dimensions, reducing the scrap rate.
High efficiency
no repeated adjustments are needed, and the single bending time is short
Moderate cost
lower procurement and maintenance costs, suitable for small and medium-sized processing enterprises.
What is a nomarl nc hydraulic press brake?
A general hydraulic NC bending machine is an industrial equipment that uses hydraulic pressure to provide power and a NC system to control precision for bending and forming metal sheets. It is a common basic device in sheet metal processing (e.g., for manufacturing distribution boxes, household appliance casings).
Application Area
Standard Equipment
Request Information- Easycat ES10 System
- Noraml 2 Axis with Y + X
- Rexroth Hydraulic Componens
- NOK Sealing Components
- Manual Crowning System
- Hiwin Ball Screw and linear guide
- Fast Clamping system for fix tools
- Front Support
- Schineider Electrical Components
- Rear protection

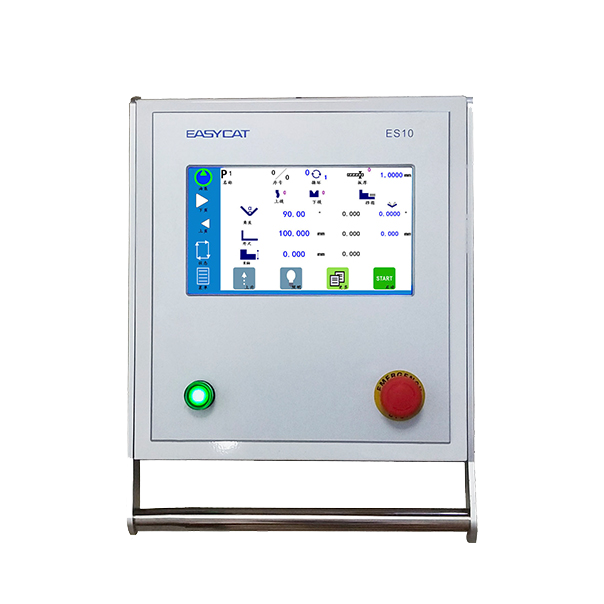

Eastcat ES10 controller
ES10 is using Taiwan touch control system, ultra-fast 2s boot-up, super computing power, touch is more sensitive.
- 10-inch TFT high definition and high contrast touch screen.
- Auotomatic calculation of supporting bending angle and length
- Support material evasion function and die management
- Strong reliability and anti-interference ability
- Suport valve configuration and soft limit function
- Support angle compensation, length compensation
- Storage of multi-step bending steps and products
- Manual axis moving and X/Y navigation teaching function

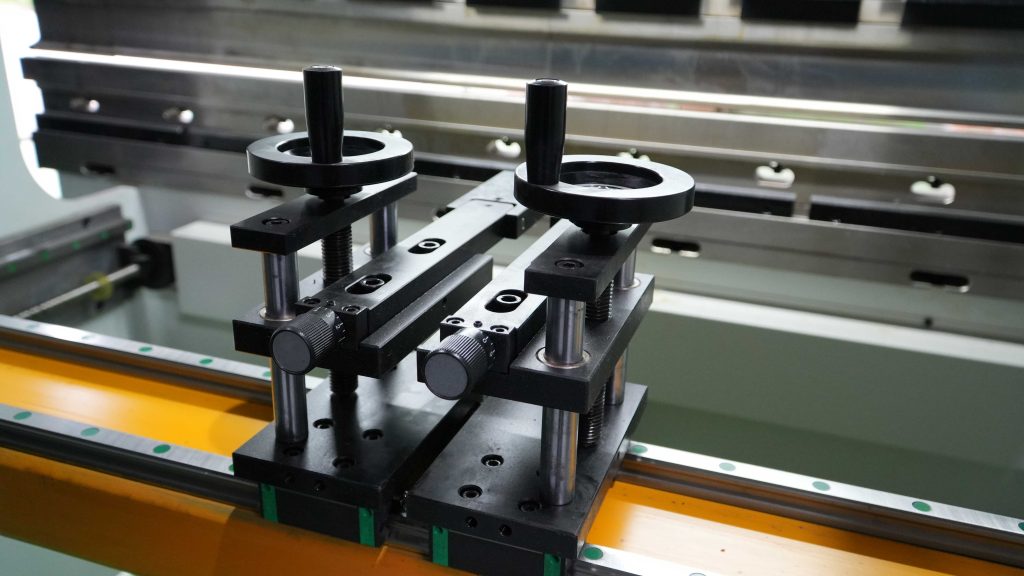

Quality Back Gauge
The NC hydraulic bending machine is a metal sheet bending equipment powered by hydraulics and controlled by a numerical control system, which is widely used in the metal processing industry.
- Taiwan Hiwin Linear guide and Ball screw used for X & R axis.
- Fingers: rotational fine adjustment
- Y-axis positioning accuracy: ±0.01mm.
- X+R axis positioning accuracy: ±0.025mm.

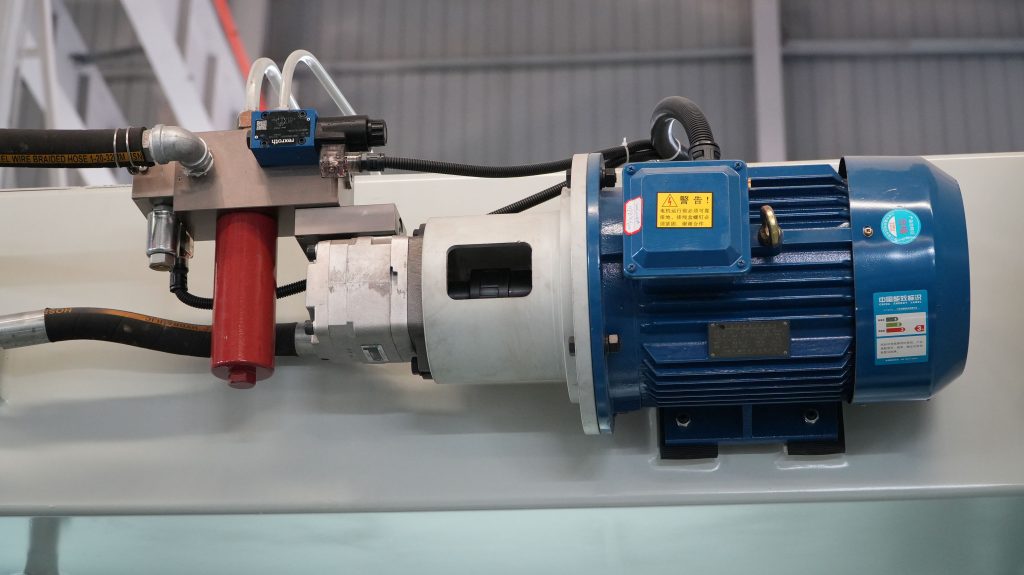

Main AC motor
Electromagnetic braking three-phase asynchronous motors are suitable for various machinery that requires quick and accurate stopping, such as hoisting cranes for lifting equipment, electric valves, machine tools, woodworking machinery, printing machinery, and reducers.
- simple structure
- rapid braking
- low vibration, low noise
- long service life
- convenient installation and maintenance
Oil Pump-nACHI
IPH- Series. Nachi (Fujikoshi) oil pumps from Japan demonstrate significant advantages in various aspects such as efficiency, stability and adaptability, thanks to their unique design and advanced technology
- Patented axial/radial pressure loading system: high efficiency, max pressure 300 bar.
- Modified involute short-tooth gear: internal gearing , ultra-quiet operation.
- Compact, light and less components.
- Impervious design for a long lifetime.
- Minimum on internal leakage brings very high efficiency.
- Elastic bearings allows a movement that expand the life time and reduce wearout.
- Unique plain bearing support mechanism (Easy Maintenance)
Hydraulic Components- rexroth
Electro-hydraulic servo bender hydraulic system: core power for high-precision bending; performance determines response speed, control accuracy, load capacity, stability.
- The German Bosch Rexroth valve block provides a powerful power source.
- A high-frequency response proportional servo valve is adopted.
- The positioning accuracy reaches 0.01mm.
- Integrated high-pressure filter.
- Integrated hydraulic deflection compensation function.
- equipped with an LVDT displacement sensor for better precision control.
Sealing Components-NOK
Hydraulic system/cylinder valves: imported sealing rings (anti-aging, good sealing); ferrule oil pipe joints (self-sealing, no ring) cut oil leakage.
- Imported japan NOK Company O-Ring + Y-Ring + U-Ring.
- Prevent leakage and ensure system pressure.
- Prevent contamination and protect hydraulic components.
- Adapt to dynamic working conditions and ensure stability.

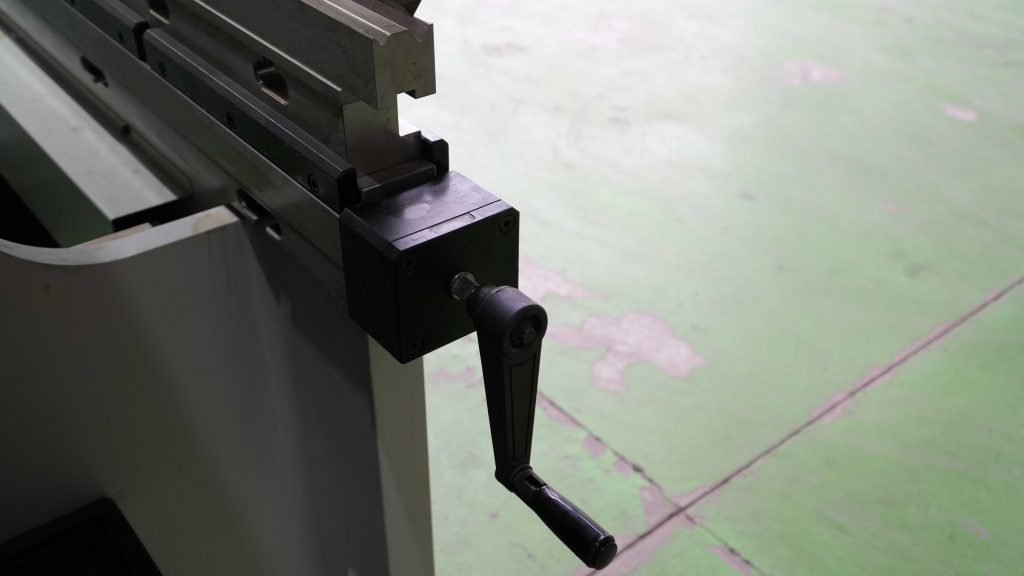

Manual Crowning Worktable
The wedge is displaced by a hand-cranked drive mechanism, thereby adjusting the shape of the worktable panel to offset the downward deflection of the frame under load.
- The overall structure is simple, with low manufacturing and maintenance costs.
- Manual adjustment is required, and automatic control cannot be achieved.
- The compensation accuracy is highly dependent on the operator's experience.
- Suitable for simple, small-batch bending operations.

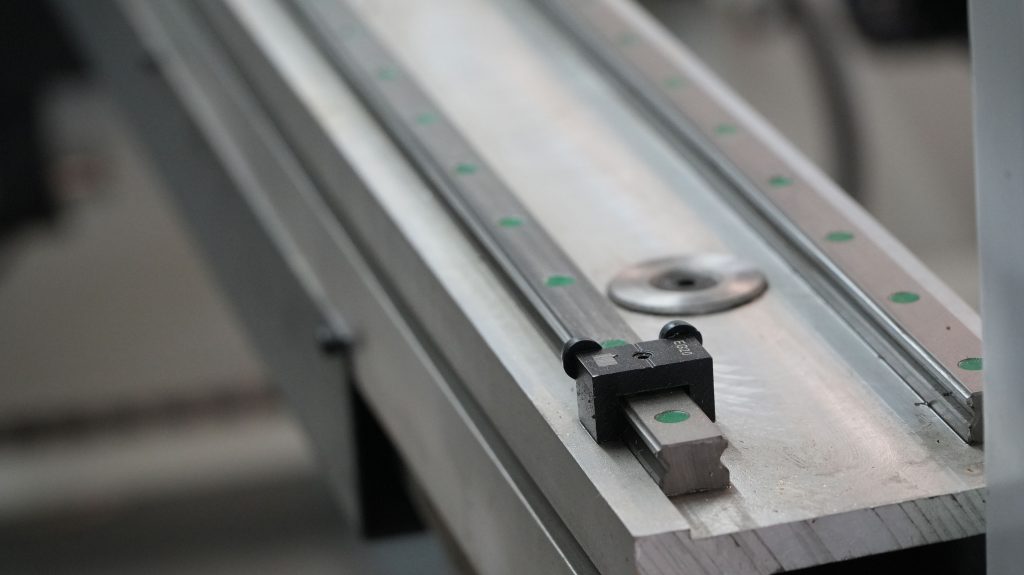

Ball Screw & Linear Guide -Hiwin
- High positioning accuracy.
- Low wear, maintaining accuracy for a long time.
- Suitable for high-speed movement, cutting machine's required driving horsepower.
- Withstands vertical (up/down) & horizontal (left/right) loads simultaneously.
- Easy assembly and interchangeability.
- Simple lubrication structure.

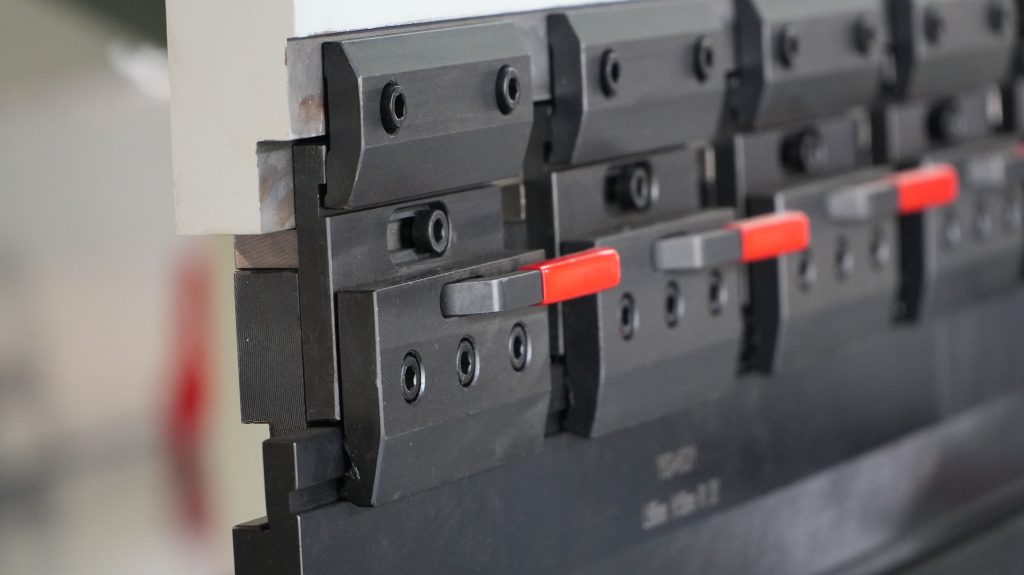

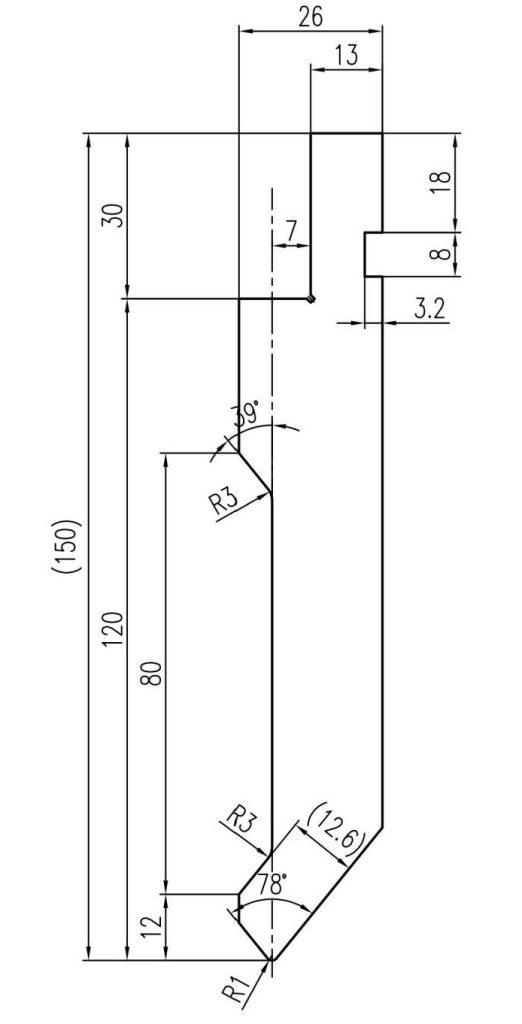

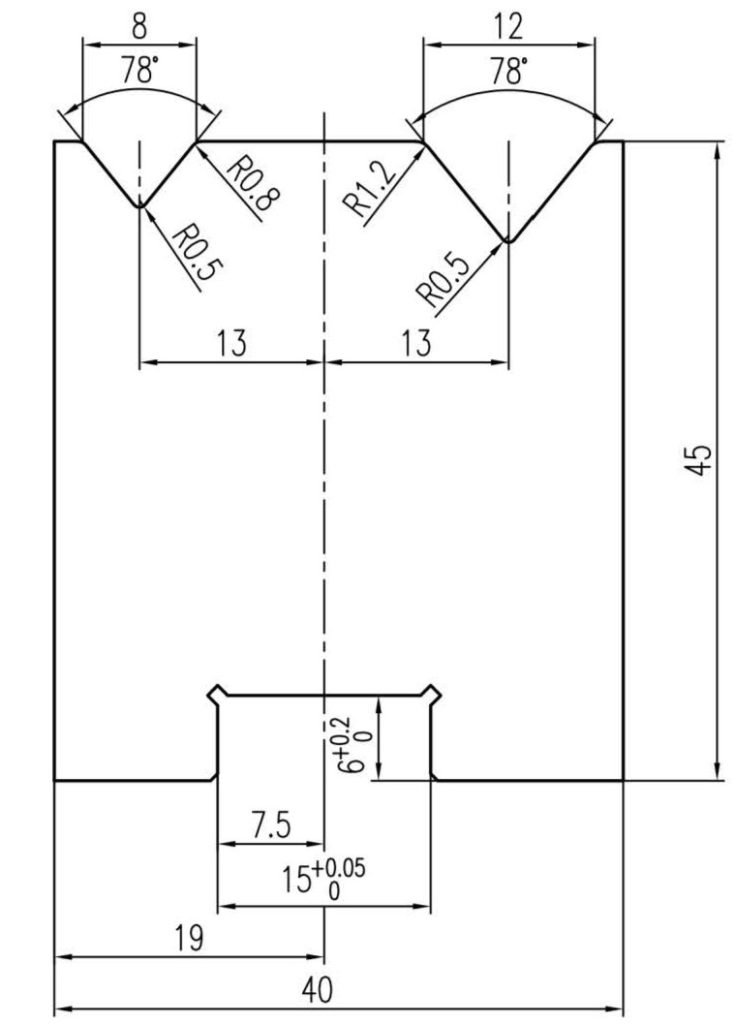

Fast Claping System
Manual quick die clamp (upper die): fast clamping/removal, solves traditional bolt pain points (low efficiency, cumbersome); fits small-batch, multi-variety sheet processing.
- Greatly shorten the die change time.
- Low operation threshold and labor-saving.
- Reliable structure and controllable cost.
- Stable clamping and precise positioning.

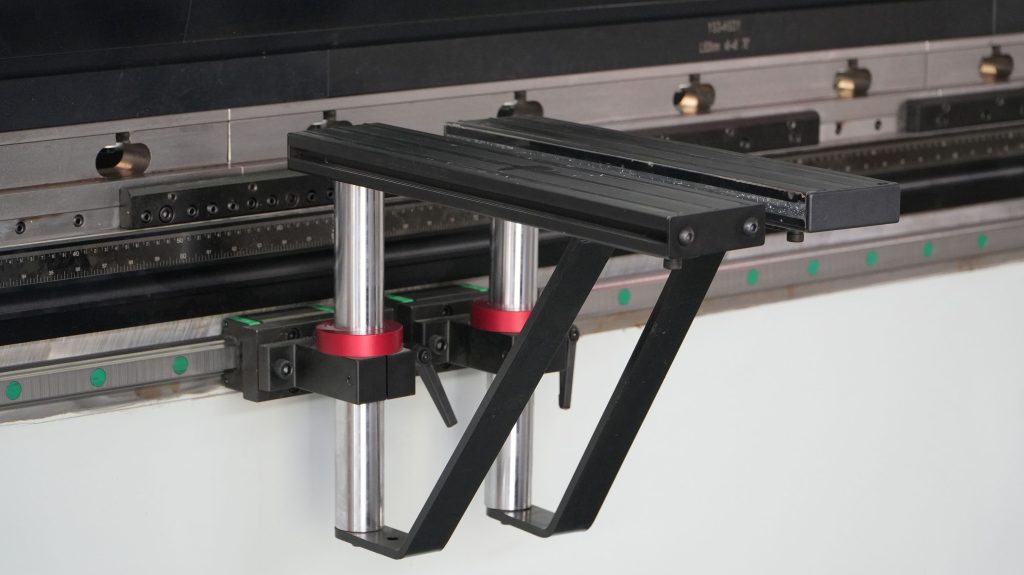

Front Support Device
It supports the sheet metal during the bending process (especially for large-size and heavy workpieces), reduces the intensity of manual holding, and ensures the processing positioning accuracy through stable support.
- Fewer complex transmission components, lower manufacturing/maintenance difficulty.
- Complete height and distance adjustment without disassembling bolts.
- Prioritize manual/small electric drives to avoid high-end servo system investment.
- Bears sheet metal weight without obvious deformation, ensuring support accuracy.

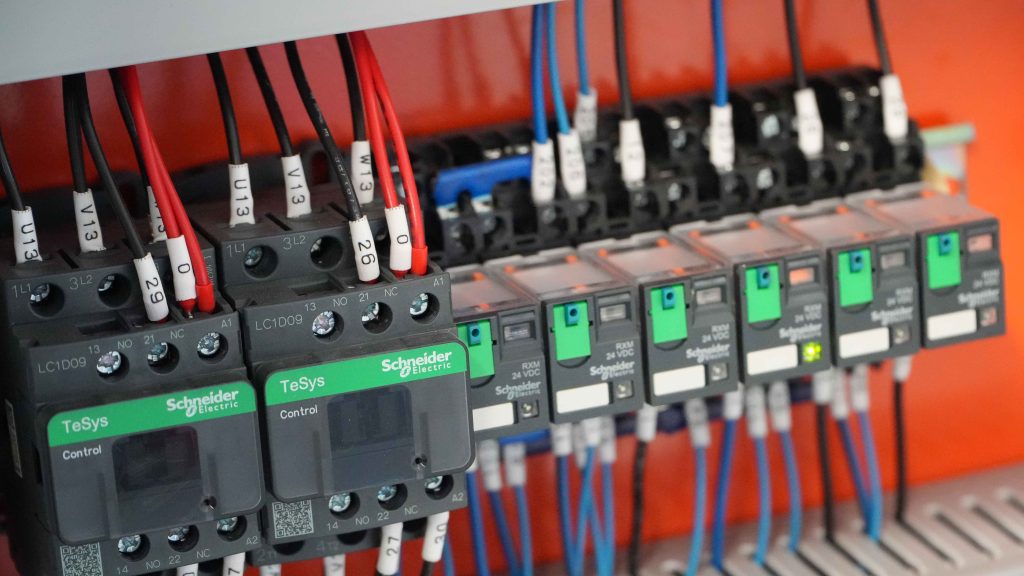

Electronic components
Adopting branded electrical components, the circuit design is simple, reasonable, and the wiring is neat. The oversized cabinet is sturdy and durable, with good heat dissipation and low failure rate.
- Schneider imported components are adopted, featuring reliable quality and safety as well as easy replacement

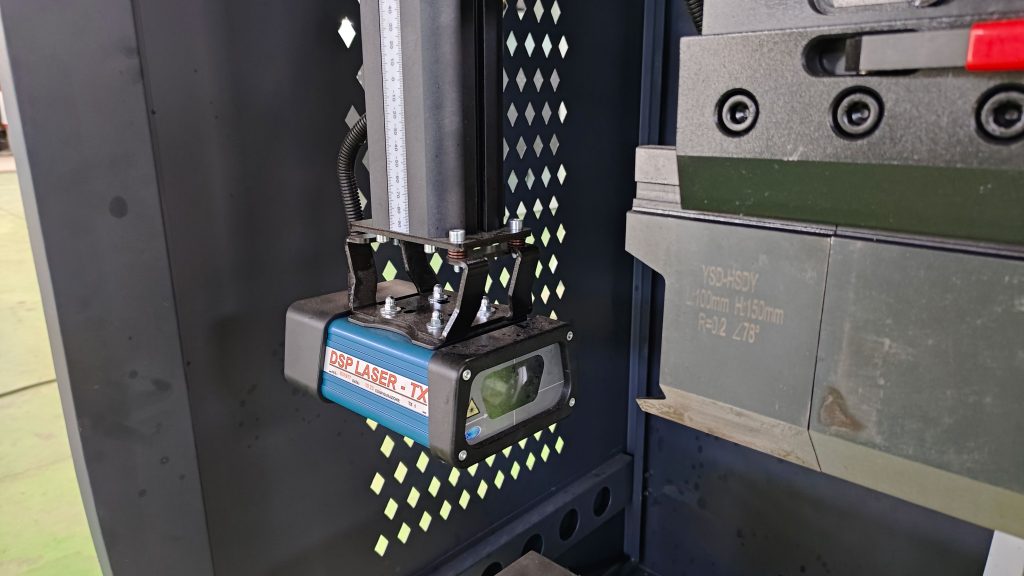

DSP Laser Protection
DSP laser safety device protects operator safety (avoids slider movement risks); forms block protection for bending tool tip (front/middle/rear), fixed under tip & moves with die. Any object enters zone before touching tip → DSP signals to stop slider.
- CLASS 1M Block Laser Emitter.
- Safety level up to CAT.4 and SIL3.
- Compliant with European CE certification.
- Protection class IP65.
- System response time is 5MS
- Maximum protection distance up to 15M
- Equipped with LED indicators to display various statuses
- With stop distance detection function
- Protects tool tip (front/middle/rear, shieldable); shielding front/rear enables box-folding.
- Shielding points: manually adjustable at will, easy setting, continuous monitoring
Rear Protection + Door open and power off
Bender door-open power-off protection: key safety function, prevents operator contact with hazardous areas (avoids mechanical injury/electric shock).
- Prevention of Mechanical Hazards
- Prevention of Injury Caused by Misoperation
- Protection of Equipment Precision
- Compliant with safety regulations
Main Parameters
| Model | Pressure | Working Table | column spacing | Slide Stroke | Max opening | throat depth | Motor power | Oil Tank | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
KN |
MM |
MM |
MM |
MM |
MM |
KW |
L |
MM |
MM |
MM |
KG |
|
50/2000 |
500 |
2000 |
1600 |
120 |
350 |
250 |
3 |
65 |
2500 |
1500 |
2120 |
2700 |
|
50/2500 |
500 |
2500 |
2100 |
120 |
350 |
250 |
3 |
65 |
3000 |
1200 |
2120 |
3200 |
|
70/2500 |
700 |
2500 |
2100 |
120 |
350 |
300 |
4 |
110 |
3000 |
1280 |
2225 |
4600 |
|
70/3200 |
700 |
3200 |
2500 |
120 |
350 |
300 |
4 |
110 |
3700 |
1280 |
2225 |
4800 |
|
100/2500 |
1000 |
2500 |
2000 |
160 |
415 |
400 |
5.5 |
125 |
3000 |
1330 |
2420 |
5800 |
|
100/3200 |
1000 |
3200 |
2500 |
160 |
415 |
400 |
5.5 |
125 |
3700 |
1350 |
2465 |
6500 |
|
100/4000 |
1000 |
4000 |
3300 |
160 |
415 |
400 |
5.5 |
125 |
4500 |
1350 |
2640 |
8200 |
|
135/3200 |
1350 |
3200 |
2500 |
160 |
415 |
400 |
7.5 |
150 |
3700 |
1600 |
2500 |
7500 |
|
135/4000 |
1350 |
4000 |
3300 |
160 |
415 |
400 |
7.5 |
150 |
4500 |
1600 |
2640 |
9300 |
|
165/3200 |
1650 |
3200 |
2500 |
160 |
415 |
400 |
11 |
165 |
3700 |
1550 |
2560 |
8800 |
|
165/4000 |
1650 |
4000 |
3300 |
160 |
415 |
400 |
11 |
165 |
4500 |
1600 |
2760 |
10500 |
|
200/3200 |
2000 |
3200 |
2500 |
200 |
430 |
400 |
15 |
200 |
3700 |
1600 |
2650 |
10000 |
|
200/4000 |
2000 |
4000 |
3300 |
200 |
430 |
400 |
15 |
200 |
4500 |
1600 |
2900 |
14000 |
|
200/5000 |
2000 |
5000 |
4000 |
200 |
430 |
400 |
15 |
250 |
5500 |
1650 |
3300 |
15000 |
|
200/6000 |
2000 |
6000 |
5000 |
200 |
430 |
400 |
15 |
300 |
6500 |
1650 |
3150 |
19000 |
|
250/3200 |
2500 |
3200 |
2500 |
250 |
500 |
400 |
18.5 |
300 |
3700 |
2100 |
2960 |
15500 |
|
250/4000 |
2500 |
4000 |
3300 |
250 |
500 |
400 |
18.5 |
300 |
4500 |
2100 |
2960 |
17000 |
|
250/5000 |
2500 |
5000 |
4000 |
250 |
500 |
400 |
18.5 |
300 |
5500 |
2100 |
2960 |
18000 |
|
250/6000 |
2500 |
6000 |
5000 |
250 |
500 |
400 |
18.5 |
300 |
6500 |
2100 |
3500 |
27000 |
|
320/3200 |
3200 |
3200 |
2500 |
250 |
500 |
400 |
22 |
400 |
3700 |
2200 |
3250 |
19000 |
|
320/4000 |
3200 |
4000 |
3300 |
250 |
500 |
400 |
22 |
400 |
4500 |
2200 |
3250 |
21000 |
|
320/5000 |
3200 |
5000 |
4000 |
250 |
500 |
400 |
22 |
400 |
5500 |
2200 |
5000 |
27000 |
|
320/6000 |
3200 |
6000 |
5000 |
250 |
500 |
400 |
22 |
400 |
6500 |
2200 |
5750 |
32000 |
