High power H beam cutting machine
SDHG Series
Designed specifically for cutting profiles such as I-beams, H-beams, and channel steels, this high-power laser cutting equipment integrates a gantry-type heavy-duty structure and an intelligent cutting system, enabling high-precision, high-efficiency, and fully automated cutting processing of large-sized profiles.
Request A quoteBrowse the parameters
Laser Power
12000w - 60000w
Cutting Head
Specialized Cutting Head for I-beams
loading
Full-Automatic Loading and Unloading
Cutting Accuracy
±0.03mm
Product Overview
Designed specifically for the steel structure processing industry, it is equipped with an ultra-high-power fiber laser ranging from 12000W to 20000W, paired with a gantry-type heavy-duty welded machine bed and a specialized cutting head for I-beams.
- Exclusive patented gantry structure design features light load and industry-leading loading speed.
- The gantry dual-drive structure ensures safety, stability, high precision, and no performance attenuation, making it suitable for long-term 24/7 continuous operation.
- Independently developed 3D five-axis linkage technology enables ultra-high efficiency.
- Open-structure dual-station design allows alternating operation of the two stations, saving loading and unloading time. The processing efficiency is approximately 15 times that of manual operation.
- The system supports contour detection and automatically adapts to workpiece deformation.
- The tooling positioning and centering device effectively controls the impact of material deformation.
- High-precision floating axis design ensures fast response and is equipped with anti-collision function.
- For H-beams of various specifications (web thickness: 100mm-1200mm), functions including cutting-off, hole cutting, beveling, marking/engraving, and line scribing are completed in one go without transfer.
- The process library includes fine hole cutting processes.
- Supports bevel cutting processes for various lap joint forms.
- Supports cutting based on TEKLA steel structure 3D modeling data files.
- The equipment is equipped with processing statistics function, allowing real-time processing status to be viewed on remote terminals.
Core Product Features
The SDHG series is specially built for profile cutting. Integrating a number of exclusive technologies, it achieves high efficiency and precision in I-beam processing.
Ultra-High Power Laser
Equipped with an ultra-high power fiber laser ranging from 12000W to 20000W, it can easily cut the flange plates of I-beams with a thickness of up to 50mm, and the cutting speed is 300% faster than that of traditional equipment.
Specialized Cutting Head
This customized profile cutting head is equipped with automatic focusing and anti-collision functions. It can adapt to multi-angle cutting of the complex cross-section of I-beams, enabling dead-angle-free processing.
Heavy-Duty Gantry
The integral gantry-type welded machine bed undergoes annealing and aging treatment to eliminate internal stress. This improves the equipment's operational stability by 50% and ensures long-term high-precision cutting.
Intelligent Profile
Equipped with a built-in visual recognition system, it can automatically identify the cross-sectional dimensions and position of I-beams without manual alignment, significantly reducing the difficulty of operation.
Fully Automatic System
An optional truss-type loading and unloading manipulator is available to realize automatic loading of raw materials and automatic unloading of finished products. A single operator can handle multiple pieces of equipment, reducing labor costs.
Remote service
Integrated with an industrial Internet of Things (IoT) module, it supports remote fault diagnosis, program upgrades, and maintenance guidance, reducing equipment downtime by 80%.
Main Parameters
| Parameter Item | Technical Specifications |
|---|---|
|
Laser Power |
12000w | 20000w | 30000w | 60000w |
|
Max Cut Length |
26000mm |
|
Max Plate Width |
3000mm |
|
H beam Max cut width |
1200mm |
|
H beam max cut hight |
500mm |
|
Max cut thickness |
Straight ≤40mm |
|
Wing Plate Groove |
≤30mm |
|
Cut Accuracy |
±0.05mm |
|
Max running speed |
50m/minutes |
|
Positioning accuracy |
±0.05mm |
|
Acceeleration speed |
0.5G |
|
Electricity Deman |
380V 50HZ /60HZ |
Gantry-type welding machine bed
It adopts an integral welded gantry-type machine bed structure. After high-temperature annealing and aging treatment, internal stresses are eliminated to ensure no deformation of the machine bed, providing a stable mechanical foundation for high-precision cutting.
- Welding of thick-walled square tubes, featuring high rigidity
- Annealing treatment, ensuring high stability
- Gantry double-drive design, enabling smooth operation
Powerful Laser Source
It features high electro-optical conversion efficiency (>40%), excellent beam quality, high energy density, wide modulation frequency range, strong reliability, long service life, and maintenance-free operation. It can be widely applied in fields such as welding, precision cutting, cladding, surface treatment, and 3D printing. Its fiber output characteristic makes it easier to integrate with robots into flexible manufacturing equipment, meeting the needs of three-dimensional processing.
- Excellent beam quality
- High reliability
- High power stability
- Continuous adjustable power and fast switching response
- Maintenance-free operation
- High electro-optical conversion efficiency
- High modulation frequency
Laser Head Specialized for Pipe Cutting
Equipped with a laser head specialized for pipe cutting, it can achieve 360° rotational cutting. It is suitable for complex cutting requirements of pipes such as bevels, round holes, and special-shaped holes, with burr-free cuts that require no secondary processing.
- 360° rotational cutting, suitable for complex processes
- Automatic focusing, adaptable to different pipe wall thicknesses
- Anti-collision protection, high safety
Raytools Flat cutting system
The Raytools system is a laser cutting software suitable for power ranges of 30KW and below. It supports both EtherCAT bus servos and pulse servos. Featuring easy installation, simple debugging, and comprehensive functions, it is applicable to industries such as advertising machine manufacturing and sheet metal processing.
- The system monitors the operating data of key components of the intelligent head in real time.
- It triggers timely alarms and shuts down in case of abnormalities, preventing adverse effects on processing results.
- Achieve safe and efficient production, and extend the service life of equipment
- It supports batch import of processing codes
- drawing preprocessing
- coil feeding, batch fully automatic processing
- automatic blanking, enabling efficient production.
- Scrap teaching simplifies and facilitates customers' scrap processing
- reduces waste materials, and improves scrap utilization rate.
Servo motor and Driver
A stable product technology platform is adopted, and dedicated algorithms for linear and direct-drive motor control are added. This further enhances the system's performance, robustness, and usability, while providing a rich range of product configurations.
- It supports 5 types of communication bus protocols and 4 types of encoder protocols.
- supports various functions such as full closed-loop control, load inertia identification, EOE, and positioning compensation.
- 3x overload capacity design;
- Supports control of multiple motor types, including rotary motors, linear motors, and torque motors
- Supports STO (Safe Torque Off) and meets TÜV SIL3 safety certification;
- Supports multiple hardware protections;
- Dynamic braking as standard to prevent mechanical damage and ensure personnel safety;
- Supports Type-C debugging interface;
- Supports one-click parameter auto-tuning, greatly reducing debugging time;
- Simple operation, lowering operational complexity
High-precision reduce motor
Planetary reducers offer multiple advantages such as low noise, high output torque and low backlash. They can smoothly transmit the motor power to the application end and are widely used in various automated industrial fields.
- High rigidity machine body
- High precision
- High input speed
- High output torque
- High efficiency
- Low noise
- Lifetime lubrication
High-precision transmission system
It adopts imported ball screws and linear guides, which are driven by servo motors. It features high transmission precision and stable operation, ensuring the positioning accuracy and repeat positioning accuracy during the cutting process.
- It achieves an accuracy level of DIN 6-8, and is suitable for automated equipment with medium-precision requirements.
- It undergoes carburizing and quenching or induction hardening treatment, with the tooth surface hardness reaching HRC 50-55, and it has excellent wear resistance and impact resistance.
- It supports straight tooth or helical tooth structures. The helical tooth design can reduce noise and improve transmission stability, making it suitable for high-speed and high-torque scenarios
Fiber Optic Circulating Water Chiller
Lasers are beneficial for engraving & cutting most materials such as wood, glass, leather, and acrylic. For that reason, laser engraving/cutting machines are becoming an indispensable component of today’s production facilities, as well as small businesses.
- Prevent overheating
- Improve accuracy and quality
- Extend the life of your laser source
- Enhance productivity
Application Area
Construction Machinery
It is used for thick plate cutting of large structural components such as excavators, loaders, and cranes

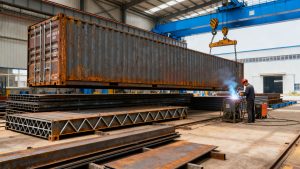

Steel Structure Processing
Processing of light steel keels, guardrail brackets, and steel structure accessories.
Rail Transit
It is used for cutting I-beams in the track support structures of subways and high-speed railways
Port Equipment
It is used for cutting I-beam structures of port equipment such as cranes and gantry cranes
Wind Power Equipment
It is used for thick plate cutting of large structural components such as wind power towers
Mining Machinery
used for cutting heavy-duty sheets of mining equipment frames, wear-resistant parts, and conveying equipment
