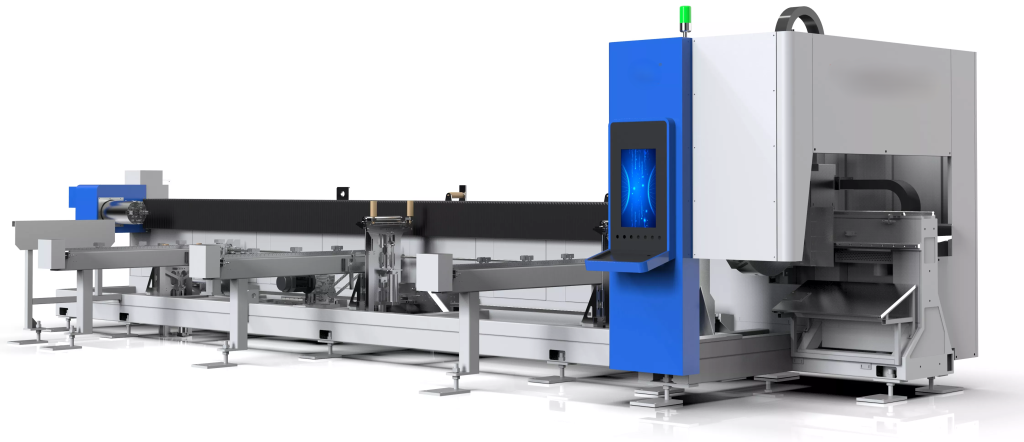

Semi-auto tube laser cutting
SDP Series
Designed specifically for small and medium-sized processing enterprises, this semi-automatic laser pipe cutting equipment is compatible with cutting various types of pipes such as round pipes, square pipes, and rectangular pipes. It features easy operation and high cost-effectiveness, enabling high-precision and high-efficiency semi-automatic processing of pipes while significantly lowering the threshold for manual operation
Request A quoteBrowse the parameters
Laser Power
1000w -6000w
Multi-Pipe Compatibility Cutting
Cutting Accuracy
±0.05mm
Product Overview
- The SMS SDP series semi-automatic laser pipe cutting machine is an economical pipe cutting equipment launched for small and medium-sized processing enterprises. It adopts a 1500W-6000W fiber laser, paired with a pipe-specific chuck and cutting head, and is specially designed for high-precision cutting of conventional pipes such as round pipes, square pipes, rectangular pipes, and oval pipes.
- The equipment adopts a working mode of semi-automatic loading/unloading + fully automatic cutting, and is equipped with a user-friendly touch operation interface. It can be quickly mastered without professional programming foundation. Compared with traditional saw cutting and plasma pipe cutting, its cutting precision is increased by 8 times and efficiency is improved by 200%, making it a cost-effective choice for pipe processing in small and medium-sized processing enterprises.
- Large HMI interactive interface, rich information, convenient operation, automatic fixture control
- The equipment is equipped with a semi-automatic loading system,Optional 1.5m/3m material receiving table
- Modular design concept, can be customized according to customer needs
Core Product Features
The SSD Series Single-table Laser Cutting Machine is specially built for small and medium-batch production, combining performance with practicality.
Multi-Power Laser Options
Three power configurations (1500W/3000W/6000W) are offered, capable of cutting carbon steel pipes with a thickness of up to 20mm, meeting the processing needs of different enterprises.
Multi-Pipe Compatibility
It supports the cutting of conventional pipes such as round pipes, square pipes, rectangular pipes, and oval pipes.
User-Friendly Operation
Equipped with a 15-inch touch operation screen and a built-in pipe cutting process library, it requires no professional programming foundation—operators can take up the job after simple training.
High-Precision Chuck
It adopts a three-jaw self-centering chuck with a clamping accuracy of 0.05mm. Combined with a servo feeding system, it ensures the dimensional accuracy of pipe cutting.
Compact Machine Body
The machine body adopts a compact layout, with a floor area of only 8 square meters. It is suitable for the workshop layout of small and medium-sized processing plants and saves production space
Convenient Maintenance
The core components adopt a modular design, enabling easy troubleshooting and replacement. Daily maintenance only requires cleaning the guide rails and chucks, which reduces maintenance costs.
Main Parameters
| Parameter Item | Technical Specifications |
|---|---|
|
Laser Power |
1500w | 3000w | 6000w |
|
Pipe Length(mm) |
6000mm |
|
Pipe Max.Dia (mm) |
160mm | 220mm | 350mm | 560mm | 680mm |
|
Positioning Accuracy |
±0.03mm |
|
Max. composite idle speed |
100m/minutes |
|
Acceleration speed |
1.5G |
|
Slit width |
0.1-0.5mm |
|
Chuck Speed |
120rpm |
|
Electricity demand |
380V 50Hz/60Hz |
|
Customized |
special specifications and configurations can be customized according to customer requirements. |
Horizontal Welded Machine Bed
It adopts an integral horizontal welded machine bed structure, which undergoes high-temperature annealing and aging treatment to eliminate internal stress. Aiming at the stability requirements of long-distance pipe cutting, it ensures that the machine bed does not deform or shift.
- Welding of thick-walled square pipes, featuring high rigidity
- Annealing treatment, with excellent deformation resistance
- Horizontal design, suitable for long pipe processing
Powerful Laser Source
It features higher photoelectric conversion efficiency, lower power consumption, and superior beam quality. Fiber lasers have a compact structure and are ready for use at any time. Thanks to their flexible laser output mode, they can be easily integrated with system equipment.
- Excellent beam quality
- High reliability
- High power stability
- Continuous adjustable power and fast switching response
- Maintenance-free operation
- High electro-optical conversion efficiency
- High modulation frequency

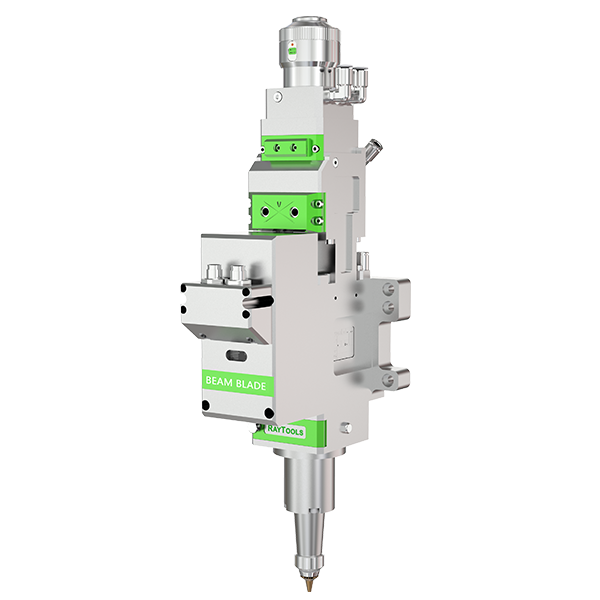

Laser Head Specialized for Pipe Cutting
Equipped with a laser head specialized for pipe cutting, it can achieve 360° rotational cutting. It is suitable for complex cutting requirements of pipes such as bevels, round holes, and special-shaped holes, with burr-free cuts that require no secondary processing.
- 360° rotational cutting, suitable for complex processes
- Automatic focusing, adaptable to different pipe wall thicknesses
- Anti-collision protection, high safety
Raytools Flat cutting system
The X series is a laser tube cutting system developed based on the xStudio platform. It includes the model XC4000T and is equipped with a variety of functions such as EtherCAT bus servo, pulse servo, weld seam recognition, automatic edge alignment, island nesting, and common edge nesting. It is suitable for machine models such as the standard dual-card ones.
- Process Editing
- XYU Z self-tuning
- Follow-up No Pipe Warning
- Roundness detection
- Chuck avoidance / coordinate avoidance / beam-type avoidance.
- Servo floating support
- Normal vector editing to cut graphics
- Blanking Floating Support Plate
Semi-Automatic Feeding Mechanism
It adopts a design of manual loading + semi-automatic servo feeding, equipped with a material supporting rack and guide wheels, which reduces the difficulty of manual loading. The feeding accuracy can reach ±0.05mm, making it suitable for small and medium-batch production.
- Feeding length: 3-6 meters
- Servo drive for high feeding accuracy
- Material supporting rack adaptable to different pipe lengths
Two-Jaw Pneumatic Chuck
Equipped with a dedicated two-jaw pneumatic chuck, it can quickly clamp pipes of different diameters. It features high clamping accuracy, prevents pipe rotation and deviation, and ensures the perpendicularity and flatness of the cutting surface.
- Clamping diameter: Φ20-Φ150mm
- Pneumatic control for fast clamping speed
- Wear-resistant jaws for long service life
Servo motor and Driver
A stable product technology platform is adopted, and dedicated algorithms for linear and direct-drive motor control are added. This further enhances the system's performance, robustness, and usability, while providing a rich range of product configurations.
- It supports 5 types of communication bus protocols and 4 types of encoder protocols.
- supports various functions such as full closed-loop control, load inertia identification, EOE, and positioning compensation.
- 3x overload capacity design;
- Supports control of multiple motor types, including rotary motors, linear motors, and torque motors
- Supports STO (Safe Torque Off) and meets TÜV SIL3 safety certification;
- Supports multiple hardware protections;
- Dynamic braking as standard to prevent mechanical damage and ensure personnel safety;
- Supports Type-C debugging interface;
- Supports one-click parameter auto-tuning, greatly reducing debugging time;
- Simple operation, lowering operational complexity
High-precision transmission system
It adopts imported ball screws and linear guides, which are driven by servo motors. It features high transmission precision and stable operation, ensuring the positioning accuracy and repeat positioning accuracy during the cutting process.
- It achieves an accuracy level of DIN 6-8, and is suitable for automated equipment with medium-precision requirements.
- It undergoes carburizing and quenching or induction hardening treatment, with the tooth surface hardness reaching HRC 50-55, and it has excellent wear resistance and impact resistance.
- It supports straight tooth or helical tooth structures. The helical tooth design can reduce noise and improve transmission stability, making it suitable for high-speed and high-torque scenarios
High-precision reduce motor
Planetary reducers offer multiple advantages such as low noise, high output torque and low backlash. They can smoothly transmit the motor power to the application end and are widely used in various automated industrial fields.
- High rigidity machine body
- High precision
- High input speed
- High output torque
- High efficiency
- Low noise
- Lifetime lubrication
Fiber Optic Circulating Water Chiller
Lasers are beneficial for engraving & cutting most materials such as wood, glass, leather, and acrylic. For that reason, laser engraving/cutting machines are becoming an indispensable component of today’s production facilities, as well as small businesses.
- Prevent overheating
- Improve accuracy and quality
- Extend the life of your laser source
- Enhance productivity
Application Area
Sheet Metal Processing Factory
Processing of small and medium-batch sheet metal parts, meeting diverse customization needs
Kitchenware Industry
Cutting of stainless steel kitchenware, with smooth edges and no burrs, reducing subsequent processing.
Fitness Equipment Industry
For fitness equipment, the cutting of pipes and bevel cutting can be completed in one operation.
Elevator Industry
Cutting of elevator sheet metal parts, featuring high efficiency and stability, and meeting mass production
Furniture Hardware
Cutting and forming of metal furniture frames and hardware accessories
Mechanical Equipment
Custom processing of various mechanical parts and components, meeting small-batch production needs
