Single Table Laser Cutting Machine
SDS Series
The SMS SDS Series Single-table Laser Cutting Machine is specially designed for small and medium-batch production. It combines high cost-effectiveness with stable cutting performance, featuring easy operation and a small footprint, making it an ideal choice for start-up enterprises and small-scale processing plants.
Request A quoteBrowse the parameters
Laser Power
1000w - 20000w
Cutting Range
3050*1530 - 10050*2530
Cutting Accuracy
±0.03mm
Product Overview
- The SMS SSD Series Single-table Laser Cutting Machine is an economical and practical product launched by our company to meet the needs of small and medium-batch metal cutting. Adopting an integrated bed design, it features a compact structure and strong stability. While ensuring cutting accuracy, it effectively controls equipment costs and floor space.
- Equipped with a new-generation fiber laser and a high-precision transmission system, the machine can achieve precise cutting of various metal materials such as carbon steel, stainless steel, and aluminum alloy. It is widely used in fields including small sheet metal processing plants, mechanical equipment parts processing, and advertising letter production, providing cost-effective solutions for the production upgrading of small and medium-sized enterprises.
High Cost-Effectiveness
Entry-level price with professional-grade performance, lowering the threshold for entrepreneurship
Space-Saving
With a compact design, it only requires 10 square meters (㎡) for installation and operation.
Easy Operation
With a user-friendly control system, even beginners can quickly get started.
Core Product Features
The SSD Series Single-table Laser Cutting Machine is specially built for small and medium-batch production, combining performance with practicality.
Efficient Cutting
Equipped with a 1000W-20000W fiber laser, its cutting speed is 30% higher than that of traditional equipment, meeting the efficiency requirements of small and medium-batch production.
Precise and Stable
The positioning accuracy reaches ±0.03mm, and the repeat positioning accuracy is ±0.02mm. It adopts imported guide rails and a servo system, ensuring stable operation.
Energy Efficiency
The electro-optical conversion efficiency is over 30%, and its energy consumption is only 1/5 that of CO₂ laser cutting machines, significantly reducing production costs.
Easy Operation
Equipped with an industrial-grade CNC system, it supports graphic import and automatic nesting. Featuring a user-friendly interface, no professional programming background is required.
Compact Structure
Adopting an integrated bed design, it has a small footprint and only requires 10 square meters (㎡) of installation space, making it suitable for small-scale processing plants and workshops.
Energy Efficiency
The electro-optical conversion efficiency is over 30%, and its energy consumption is only 1/5 that of CO₂ laser cutting machines, significantly reducing production costs.
Main Parameters
| Parameter Item | Technical Specifications |
|---|---|
|
Laser Power |
1500w | 2000w | 3000w | 6000w | 12000w | 20000w | 30000w | 60000w |
|
Cutting Aera(mm) |
3050*1530 | 4050*2030 | 6050*2530 | 8050*2530 | 10050*2530 |
|
Cutting Accuracy |
±0.03mm |
|
Positioning Accuracy |
±0.03mm |
|
Max. composite idle speed |
100m/minutes |
|
Acceleration speed |
1.0G |
|
Applicable Materials |
Carbon steel, stainless steel, aluminum alloy, brass, red copper and other metal materials |
|
Transmission System |
Servo Motor + Precision Guide Rails |
|
Electricity demand |
380V 50Hz/60Hz |
|
Customized |
special specifications and configurations can be customized according to customer requirements. |

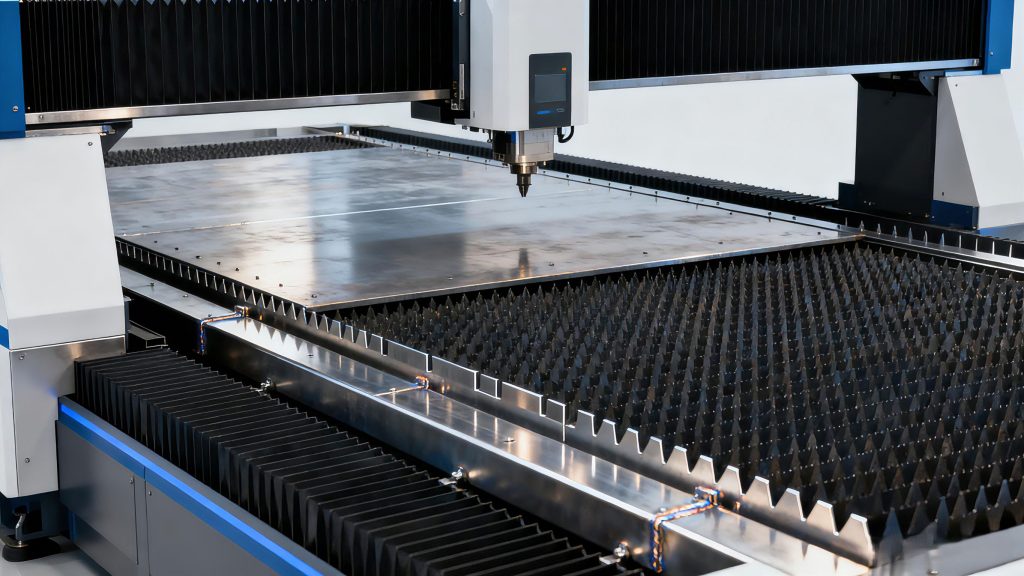

Gantry-type welding machine bed
It adopts an integral welded gantry-type machine bed structure. After high-temperature annealing and aging treatment, internal stresses are eliminated to ensure no deformation of the machine bed, providing a stable mechanical foundation for high-precision cutting.
- Welding of thick-walled square tubes, featuring high rigidity
- Annealing treatment, ensuring high stability
- Gantry double-drive design, enabling smooth operation

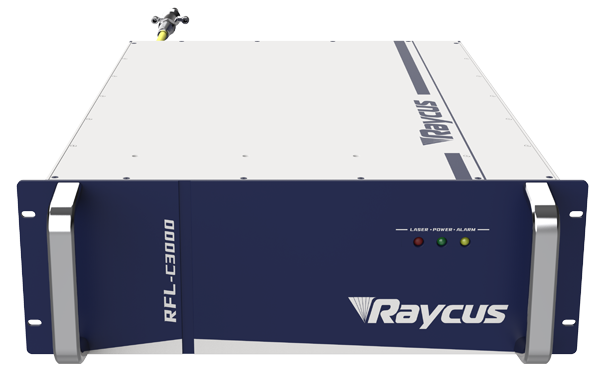

Powerful Laser Source
It features higher photoelectric conversion efficiency, lower power consumption, and superior beam quality. Fiber lasers have a compact structure and are ready for use at any time. Thanks to their flexible laser output mode, they can be easily integrated with system equipment.
- Excellent beam quality
- High reliability
- High power stability
- Continuous adjustable power and fast switching response
- Maintenance-free operation
- High electro-optical conversion efficiency
- High modulation frequency

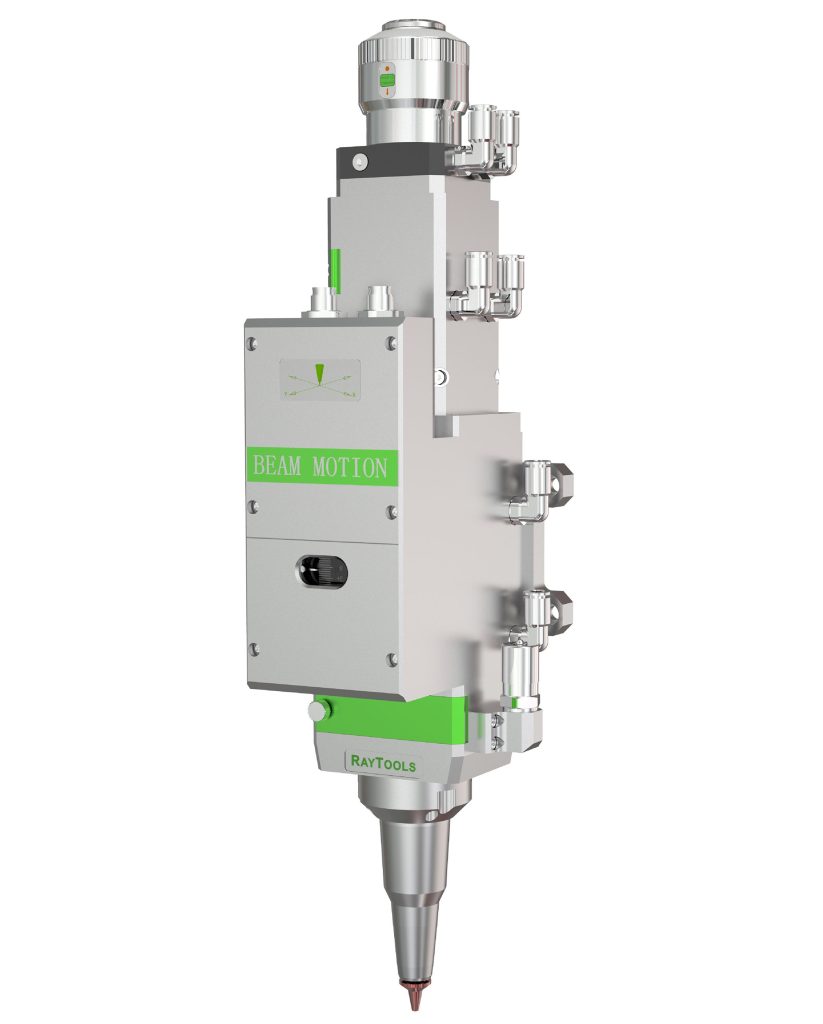

Laser Head Specialized for Pipe Cutting
Equipped with a laser head specialized for pipe cutting, it can achieve 360° rotational cutting. It is suitable for complex cutting requirements of pipes such as bevels, round holes, and special-shaped holes, with burr-free cuts that require no secondary processing.
- 360° rotational cutting, suitable for complex processes
- Automatic focusing, adaptable to different pipe wall thicknesses
- Anti-collision protection, high safety

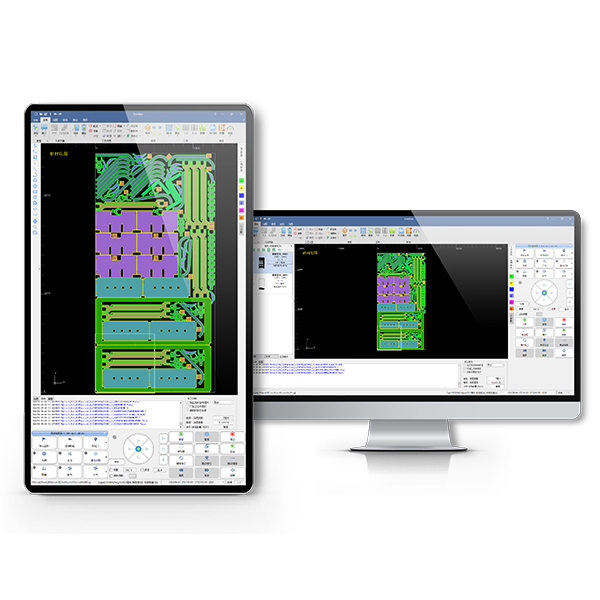

Raytools Flat cutting system
The Raytools system is a laser cutting software suitable for power ranges of 30KW and below. It supports both EtherCAT bus servos and pulse servos. Featuring easy installation, simple debugging, and comprehensive functions, it is applicable to industries such as advertising machine manufacturing and sheet metal processing.
- The system monitors the operating data of key components of the intelligent head in real time.
- It triggers timely alarms and shuts down in case of abnormalities, preventing adverse effects on processing results.
- Achieve safe and efficient production, and extend the service life of equipment
- It supports batch import of processing codes
- drawing preprocessing
- coil feeding, batch fully automatic processing
- automatic blanking, enabling efficient production.
- Scrap teaching simplifies and facilitates customers' scrap processing
- reduces waste materials, and improves scrap utilization rate.

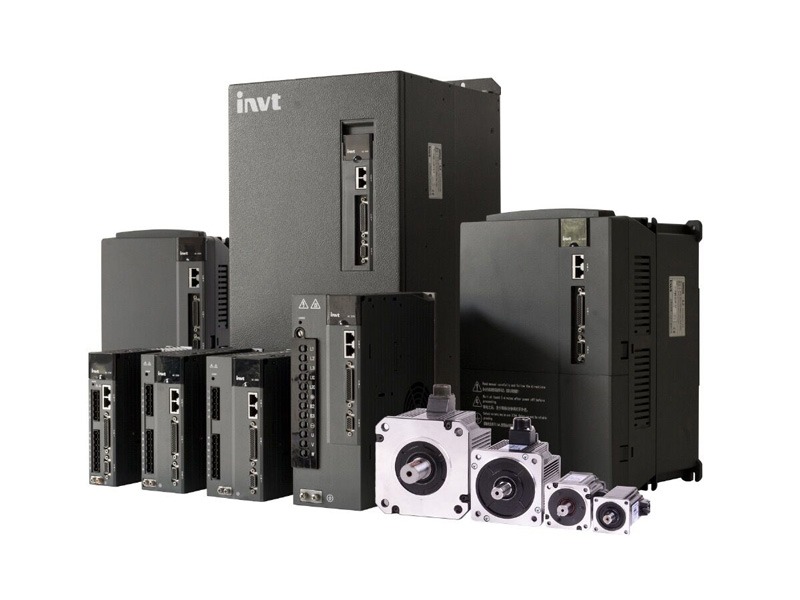

Servo motor and Driver
A stable product technology platform is adopted, and dedicated algorithms for linear and direct-drive motor control are added. This further enhances the system's performance, robustness, and usability, while providing a rich range of product configurations.
- It supports 5 types of communication bus protocols and 4 types of encoder protocols.
- supports various functions such as full closed-loop control, load inertia identification, EOE, and positioning compensation.
- 3x overload capacity design;
- Supports control of multiple motor types, including rotary motors, linear motors, and torque motors
- Supports STO (Safe Torque Off) and meets TÜV SIL3 safety certification;
- Supports multiple hardware protections;
- Dynamic braking as standard to prevent mechanical damage and ensure personnel safety;
- Supports Type-C debugging interface;
- Supports one-click parameter auto-tuning, greatly reducing debugging time;
- Simple operation, lowering operational complexity

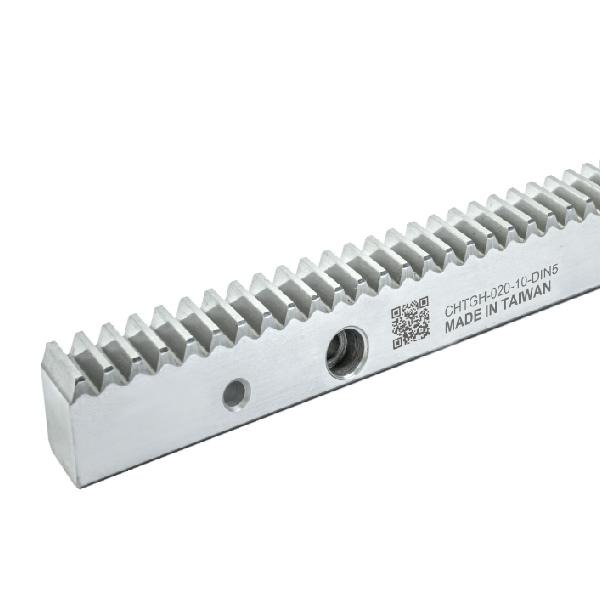

High-precision transmission system
It adopts imported ball screws and linear guides, which are driven by servo motors. It features high transmission precision and stable operation, ensuring the positioning accuracy and repeat positioning accuracy during the cutting process.
- It achieves an accuracy level of DIN 6-8, and is suitable for automated equipment with medium-precision requirements.
- It undergoes carburizing and quenching or induction hardening treatment, with the tooth surface hardness reaching HRC 50-55, and it has excellent wear resistance and impact resistance.
- It supports straight tooth or helical tooth structures. The helical tooth design can reduce noise and improve transmission stability, making it suitable for high-speed and high-torque scenarios
High-precision reduce motor
Planetary reducers offer multiple advantages such as low noise, high output torque and low backlash. They can smoothly transmit the motor power to the application end and are widely used in various automated industrial fields.
- High rigidity machine body
- High precision
- High input speed
- High output torque
- High efficiency
- Low noise
- Lifetime lubrication

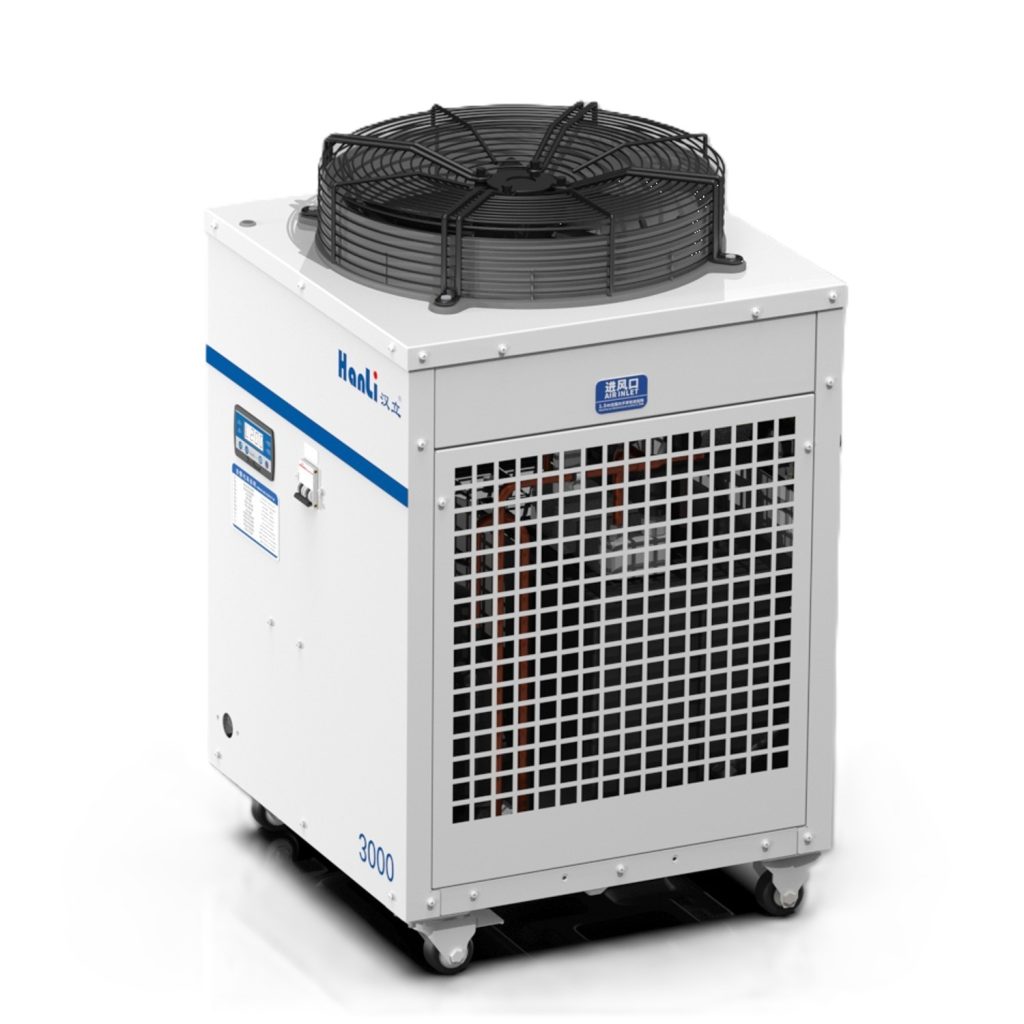

Fiber Optic Circulating Water Chiller
Lasers are beneficial for engraving & cutting most materials such as wood, glass, leather, and acrylic. For that reason, laser engraving/cutting machines are becoming an indispensable component of today’s production facilities, as well as small businesses.
- Prevent overheating
- Improve accuracy and quality
- Extend the life of your laser source
- Enhance productivity
Application Area

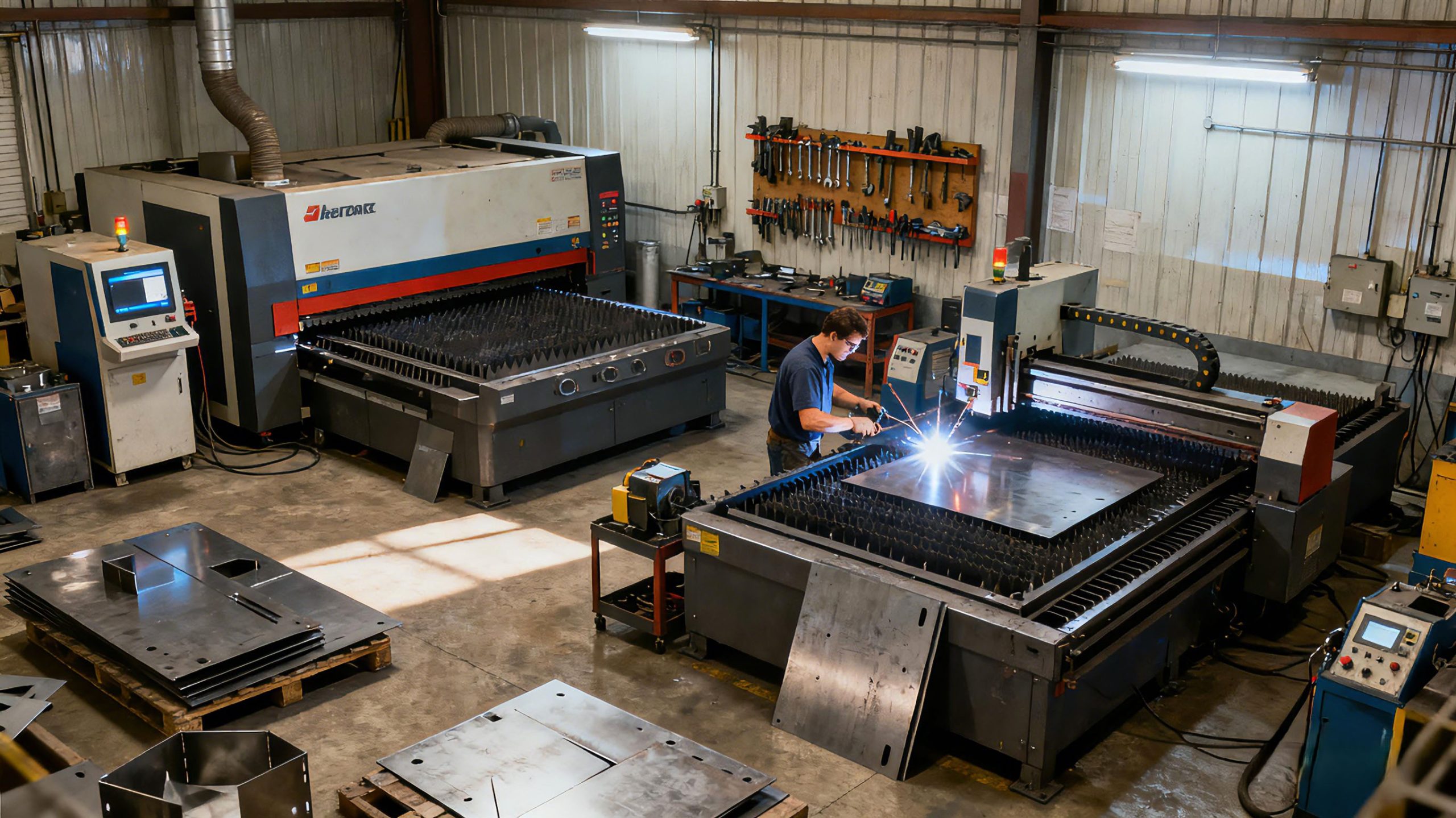

Sheet Metal Processing Factory
Processing of small and medium-batch sheet metal parts, meeting diverse customization needs
Kitchenware Industry
Cutting of stainless steel kitchenware, with smooth edges and no burrs, reducing subsequent processing.

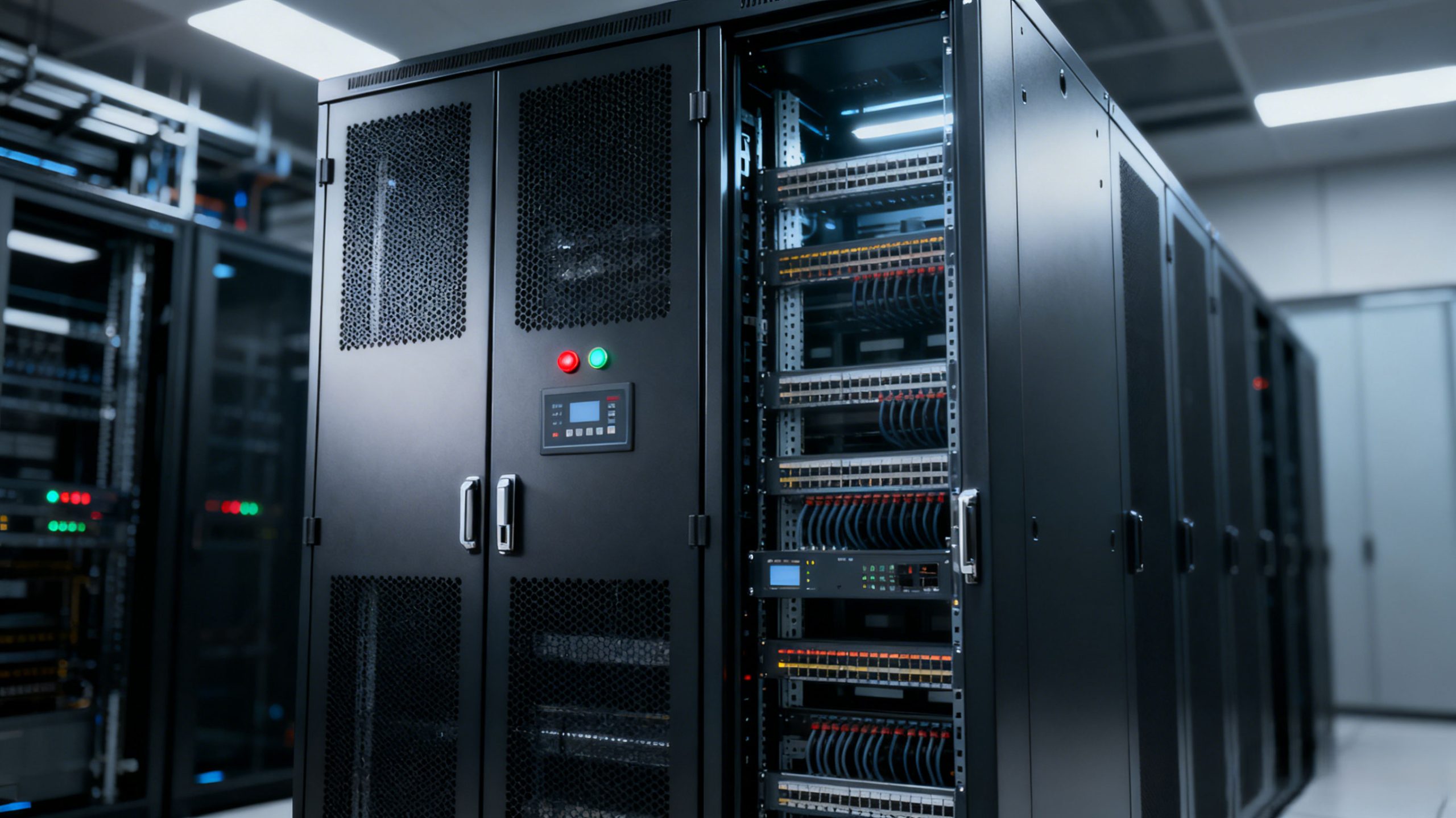

Chassis and Cabinet Industry
Cutting of complex chassis and cabinet accessories, featuring high precision and good consistency.
Elevator Industry
Cutting of elevator sheet metal parts, featuring high efficiency and stability, and meeting mass production
Furniture Hardware
Cutting and forming of metal furniture frames and hardware accessories

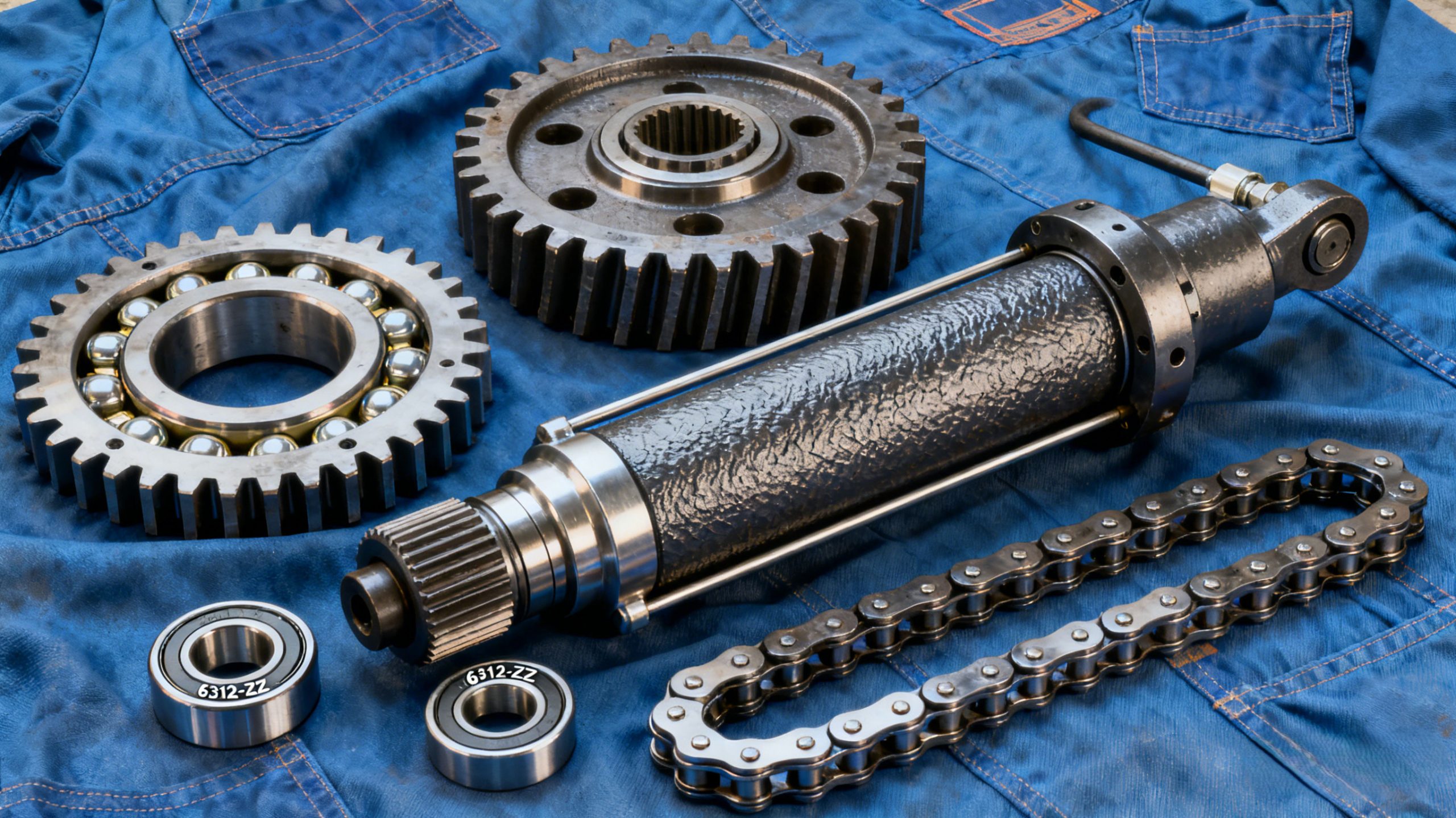

Mechanical Equipment
Custom processing of various mechanical parts and components, meeting small-batch production needs
